Ahead EGA2001
Logs
typeType
Video
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
ramRAM type
DRAM
ramRAM size
256KB
chip Chips and specs
-> Video
(multiple brand) 82C431 (Graphics Controller) (multiple brand) 82C432 (Sequencer) (multiple brand) 82C433 (Attributes Controller) (multiple brand) 82C434 (CRT Controller)
MTL
Data Bus 8-bit ISA
Card Type Video card
Video Chip Set C&T CS8240
Maximum Video Memory 256KB RAM (Type unidentified)
Video Types Supported EGA/CGA/MDA
Highest Resolution Supported 720 x 348
portintI/O ports
2x
  • RCA Jack, Composite video
1x
  • DE-9, EGA
powerPower connectors
Empty
Last updated 2025-07-04T19:07:49Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
Note
EGA2001 (not 100% guaranteed error free)
File
Logs
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

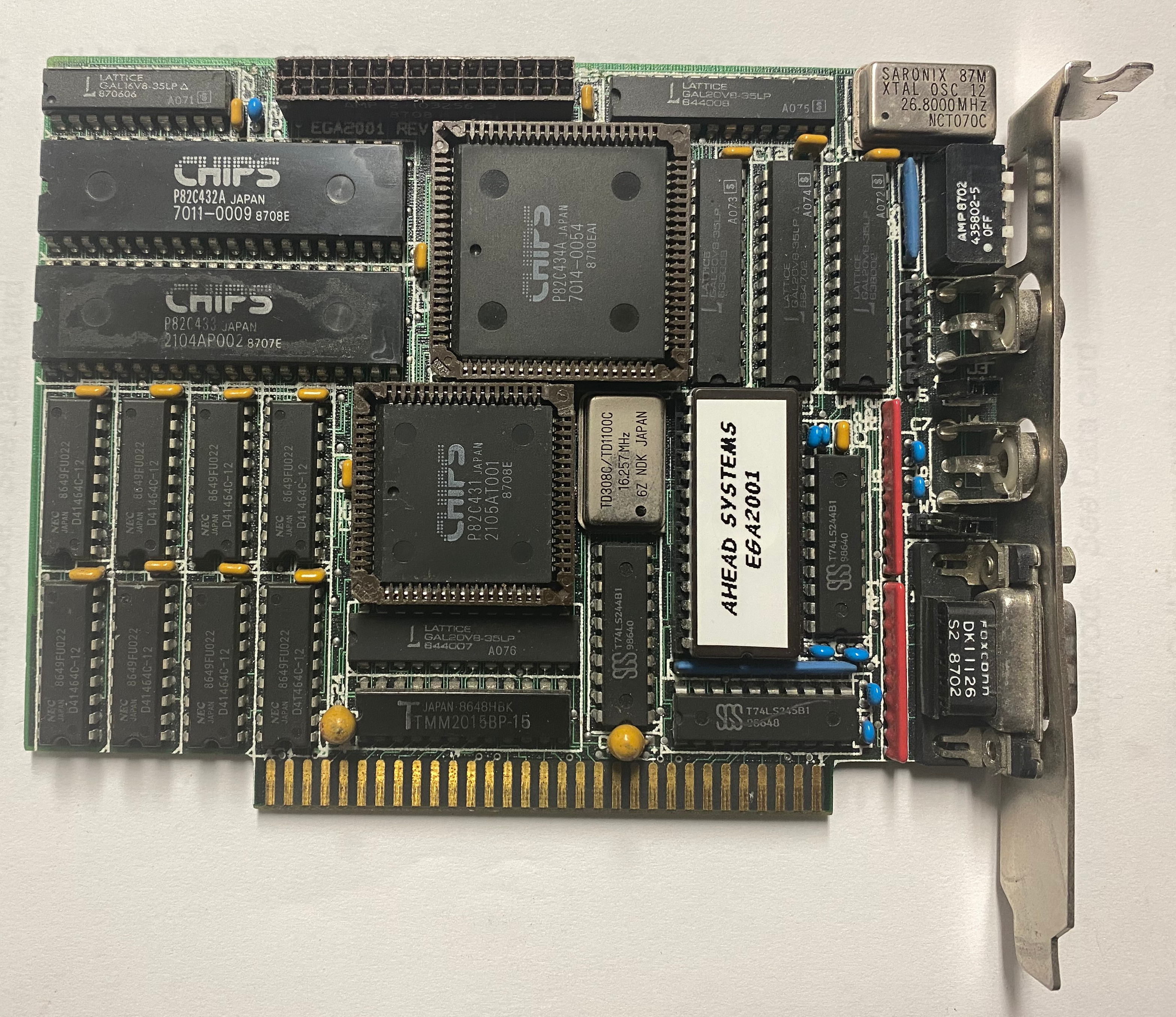

image1 Image 1 of 3 (dave_mm)

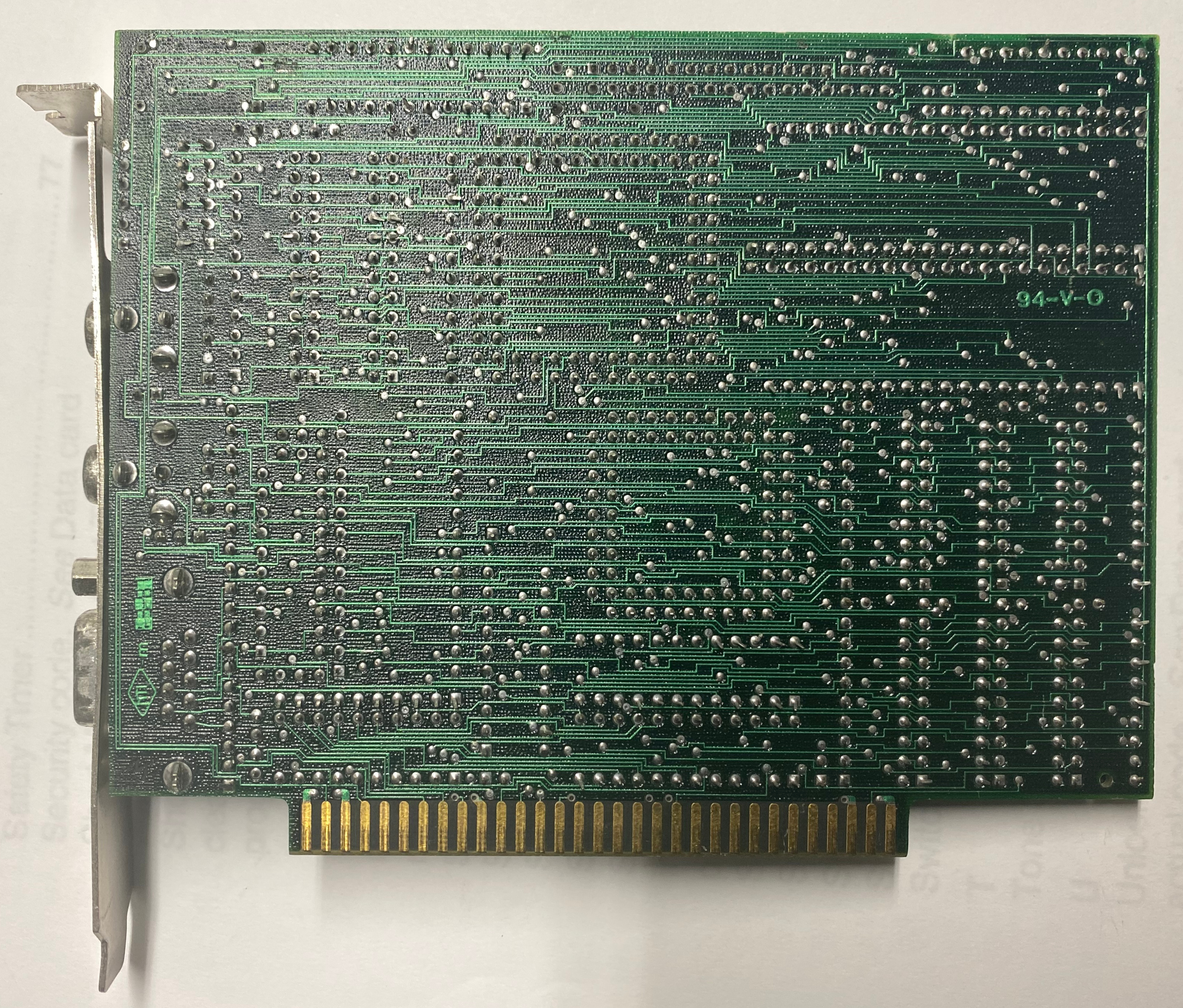

image2 Image 2 of 3 (dave_mm)

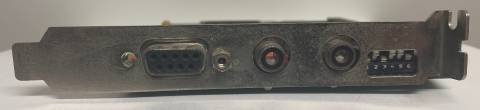

image3 Image 3 of 3 (dave_mm)
