AESL Technology PV90
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
datePCI ID
9680
fccFCC ID
IPLPV90
ramRAM type
EDO
ramRAM size
1MB2MB
chip Chips and specs
-> Video
Trident TGUI9680
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-11-09T21:02:42Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
TX1.3 (01)
OS support
OS/2 Warp 3.x
Arch
x86
Size
1.1MB
Filename
Name
Version
1.0 / 3.01.04
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
3.5MB
Filename
Name
Version
1.30.02 / UX6.0
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
3.1MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

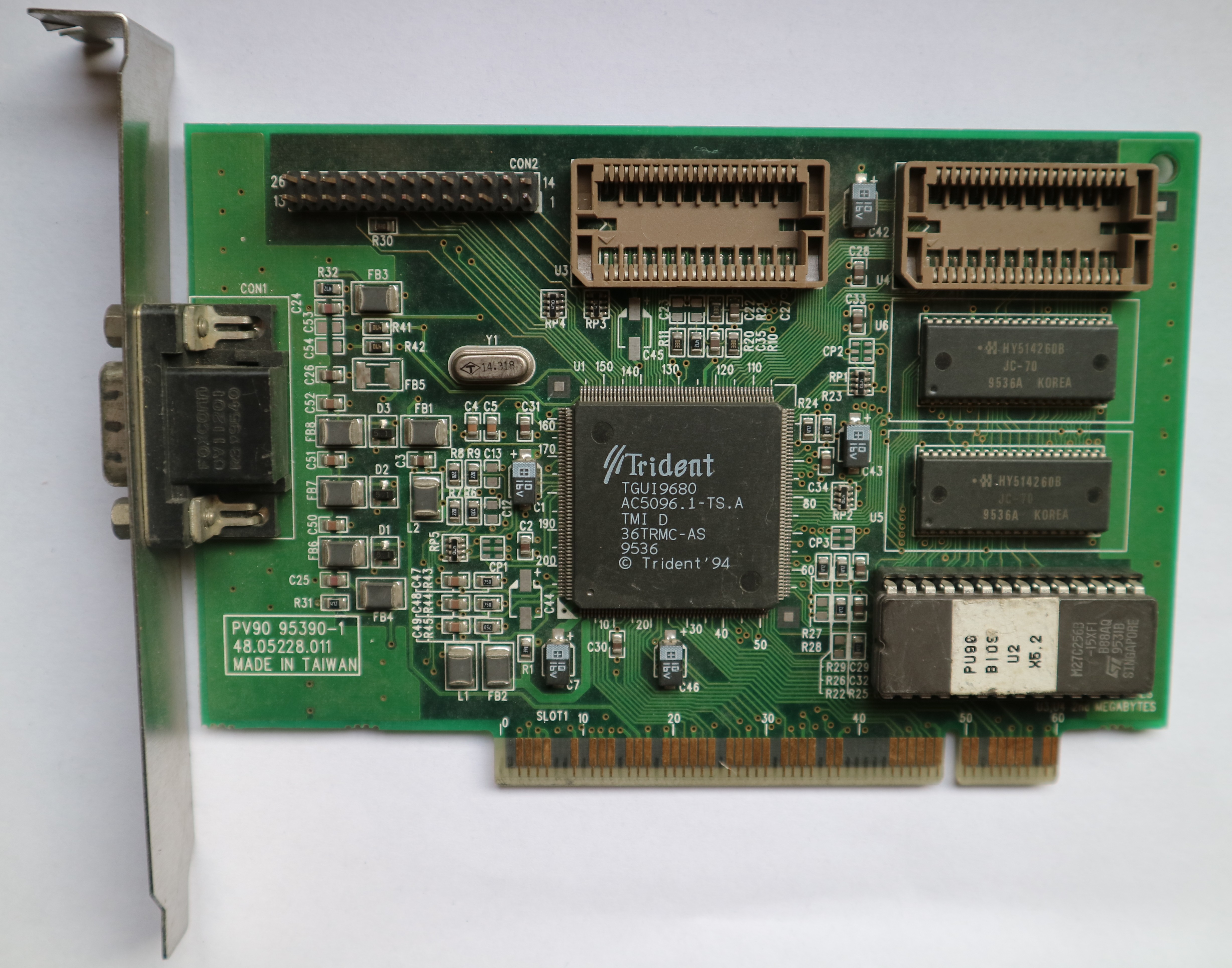

image1 Image 1 of 2 (Martes)

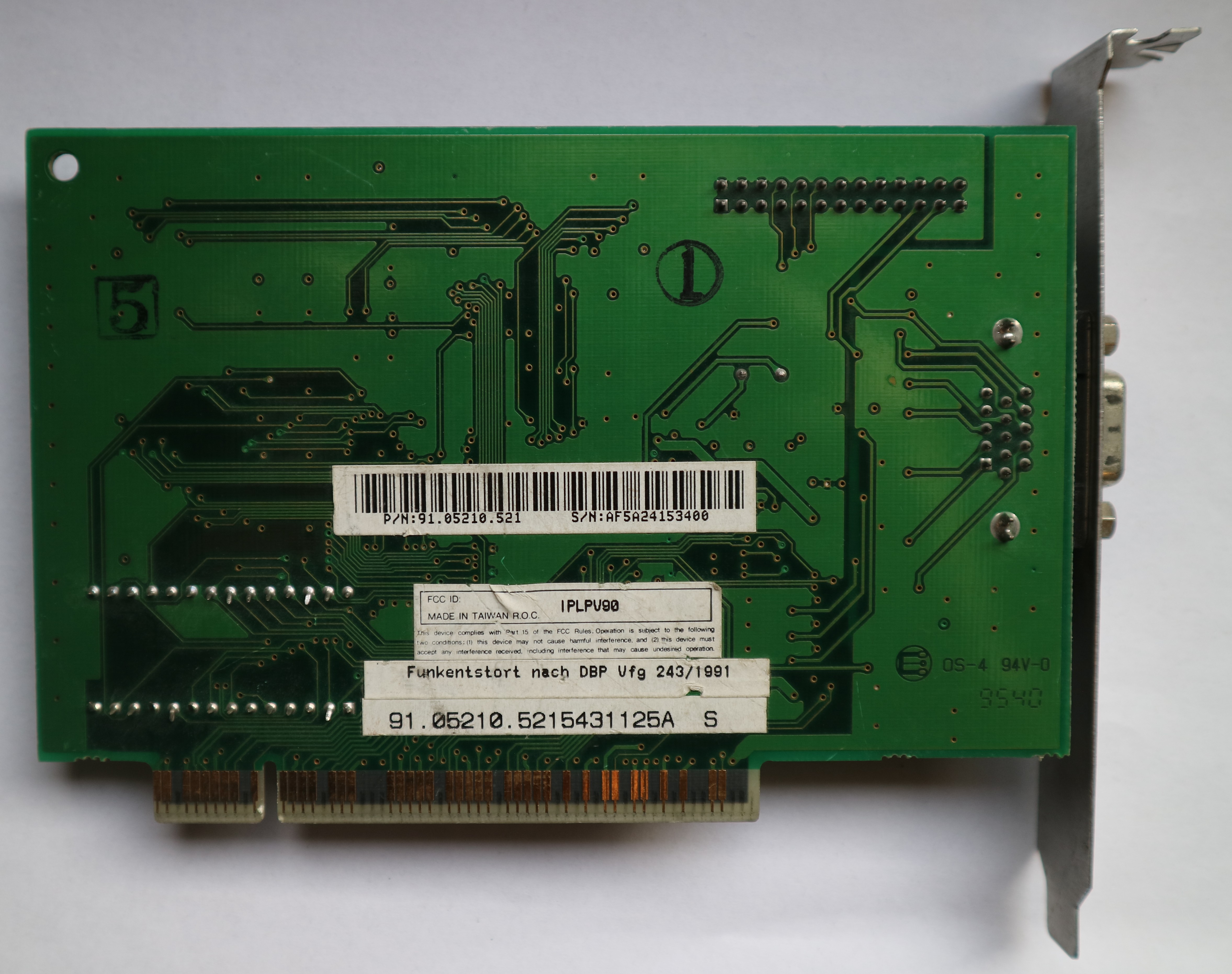

image2 Image 2 of 2 (Martes)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
