AESL Technology PA688
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
Empty
fccFCC ID
EXM255
ramRAM type
VRAM
ramRAM size
4MB2MB
chip Chips and specs
-> RAMDAC
Texas Instruments TLC34077 (RAMDAC)
-> Video
ATi mach64 GX (210888GX00)
MTL
Category Video
Memory Type DRAM
Data Bus Type PCI local bus slot
Video Processor ATI Mach 64
Video Types Supported XVGA
Maximum Onboard Memory 4MB
Highest Resolution Supported 1280 x 1024
tag Also known as
  • Acer PA688 / 93446-1m / 48.05222.001 / 91.05210.344
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-12-10T21:13:23Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.03
OS support
Windows 3.1x
Arch
x86
Size
3.5MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1996
File
Logs

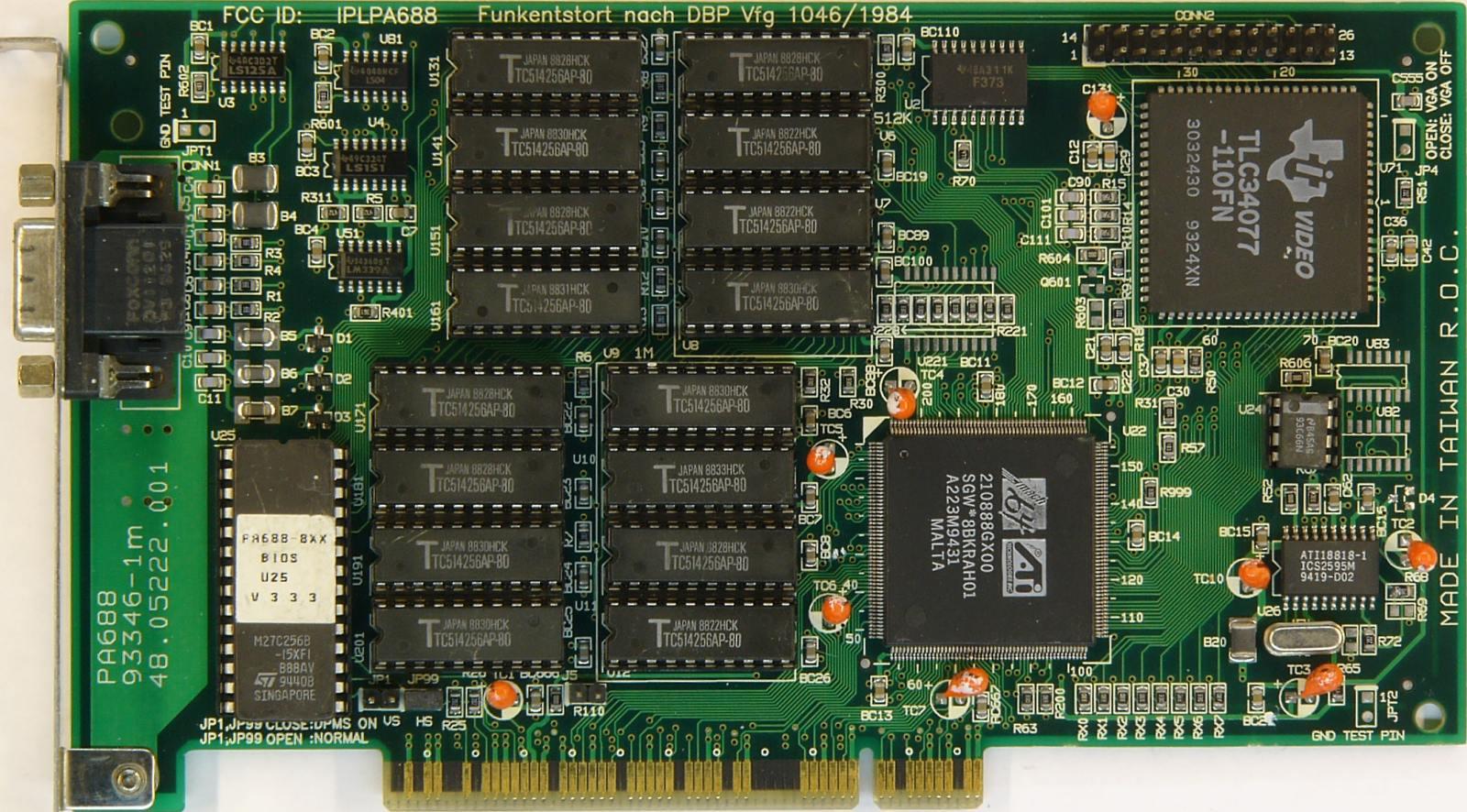

image1 Image 1 of 2 (Palcal)

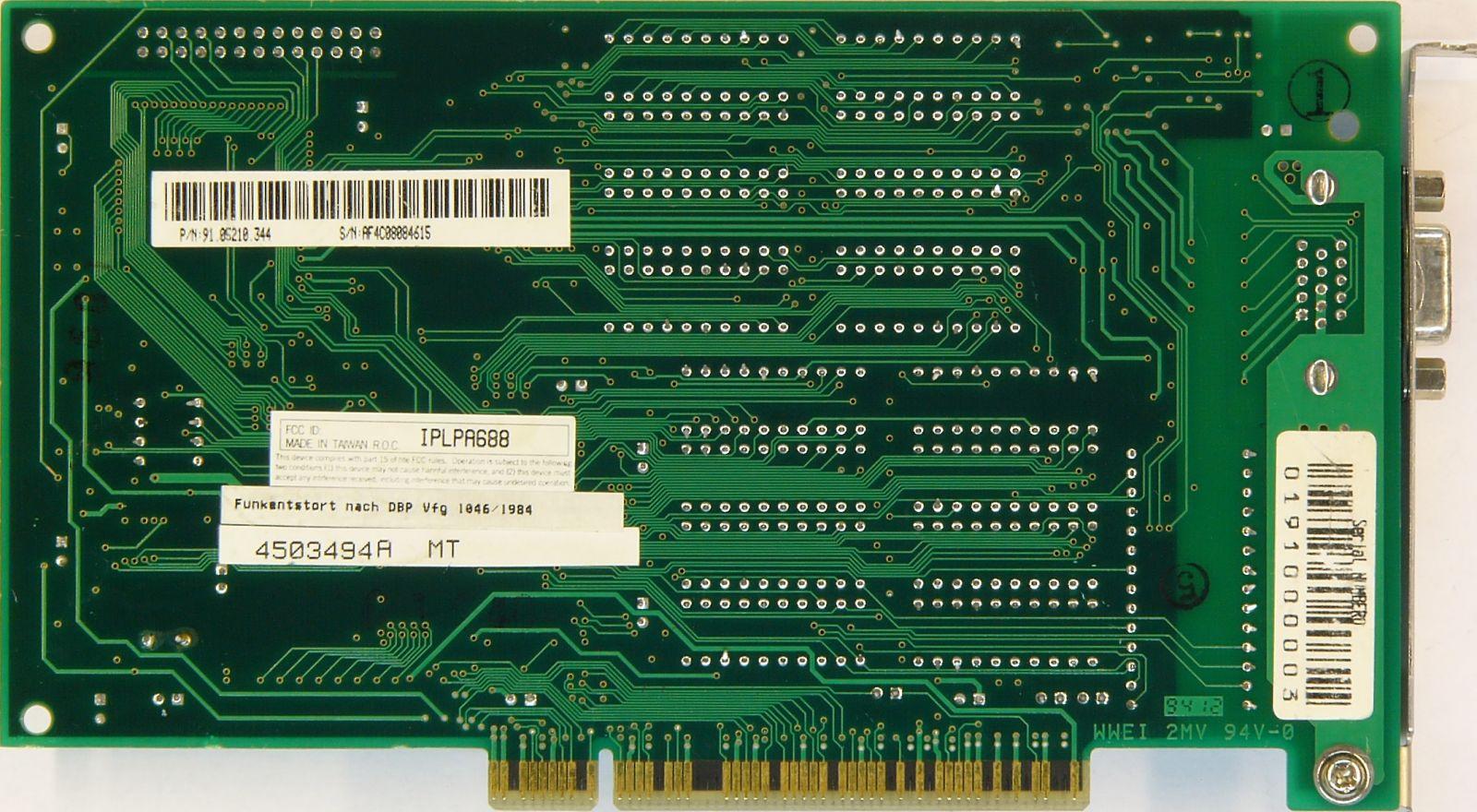

image2 Image 2 of 2 (Palcal)
