Advantech PCIE-1602 / PCIE-1604 Rev. A1 01-1
Logs
typeType
Serial controller
interfaceInterface
signalSignaling
PCIe 1.0
datePCI ID
Empty
dimDimensions
111 mm (width) x 120mm (length)
chip Chips and specs
-> UART ctrl.
EXAR XR17V352 (Dual UART)
tag Also known as
portintI/O ports
2x
  • DE-9
powerPower connectors
Empty
notes Notes
  • PCIE-1602B-AE 2-port RS-232/422/485 PCI Express comm. card w/surge
  • PCIE-1602C-AE 2-port RS-232/422/485 PCI Express comm. card w/surge and isolation
  • PCIE-1604B-AE 2-port RS-232 PCI Express comm. card w/surge
  • PCIE-1604C-AE 2-port RS-232 PCI Express comm. card w/surge and isolation
Last updated 2025-11-04T16:00:44Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2020-10
File
Logs

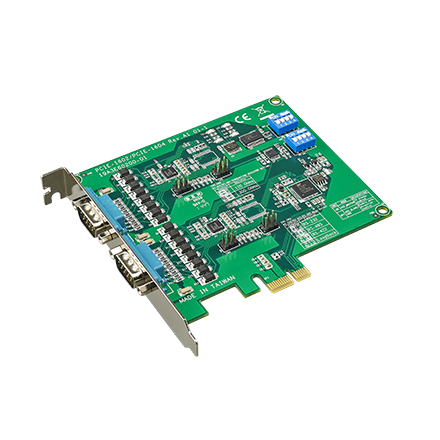

image1 Image 1 of 2 (Advantech)

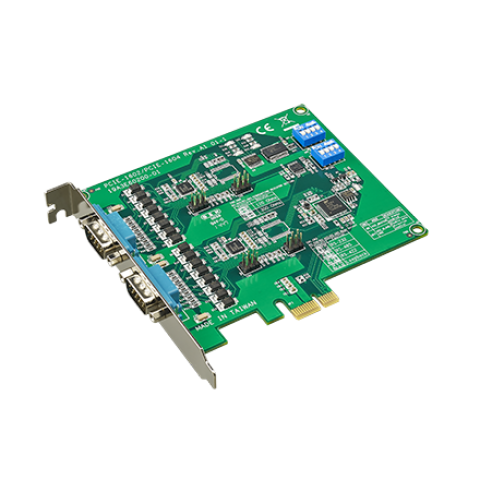

image2 Image 2 of 2 (Advantech)
