ADLink PCIe-9101
Logs
typeType
Data Acquisition (DAQ)
interfaceInterface
signalSignaling
PCIe 1.0
dimSlot height
1
datePCI ID
Empty
dimDimensions
16 mm (width) x 170mm (length) x 98mm (height)
chip Chips and specs
tag Also known as
portintI/O ports
2x
2x10 2.54mm pin header
1x
  • DC-37
powerPower connectors
Empty
notes Notes

16 Channels 16 Bits Up to 250K Sampling rate, Multiplexer, High Performance Multifunction Data Acquisition Card

Last updated 2025-05-20T12:40:47Z
biosc No BIOS files available
drv No drivers available
doc 2 card documents available
Release date
File
Logs
Release date
2024-03-01
File
Logs
Release date
2023-02-21
File
Logs

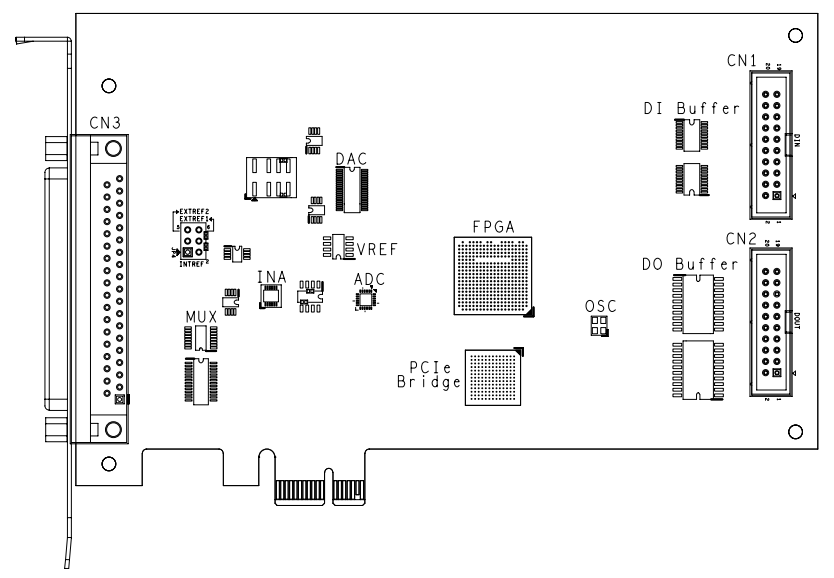

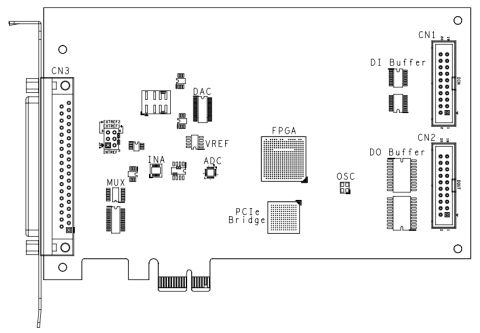

image1 Image 1 of 2 (ADLink)

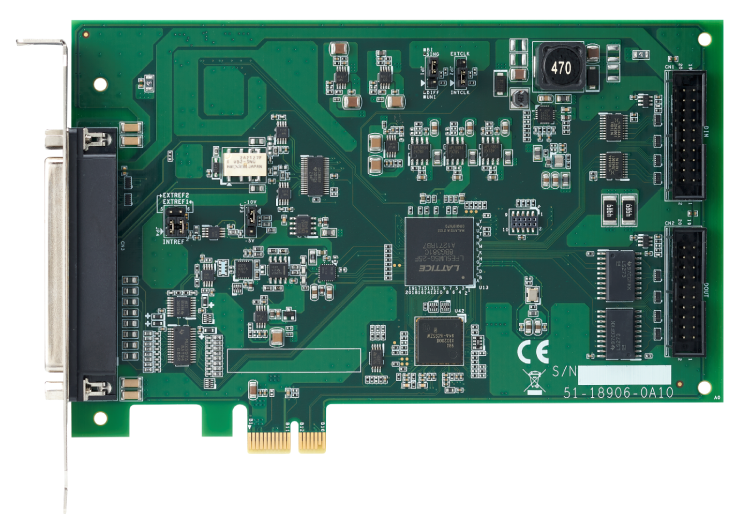

image2 Image 2 of 2 (ADLink)
