ADLink PCIe-7200
Logs
typeType
Data Acquisition (DAQ)
interfaceInterface
signalSignaling
PCIe 1.0
dimSlot height
1
datePCI ID
8112
dimDimensions
148mm (length) x 102mm (height)
chip Chips and specs
-> Bridge Interface
PLX PEX8112 (PCIe to PCI Bridge for 4 Slots)
portintI/O ports
1x
  • DC-37
1x
  • 2x20 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-05-20T12:42:26Z
biosc No BIOS files available
drv No drivers available
doc 3 card documents available
Release date
File
Logs
Release date
2012-03-28
File
Logs
Release date
2014-09-23
File
Logs
Release date
2010-03-24
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007
File
Logs

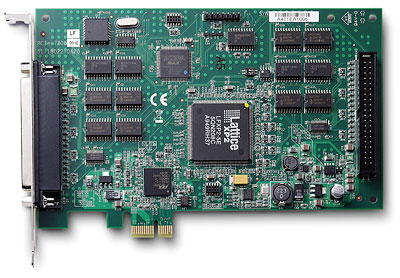

image1 Image 1 of 2 (ADLink)

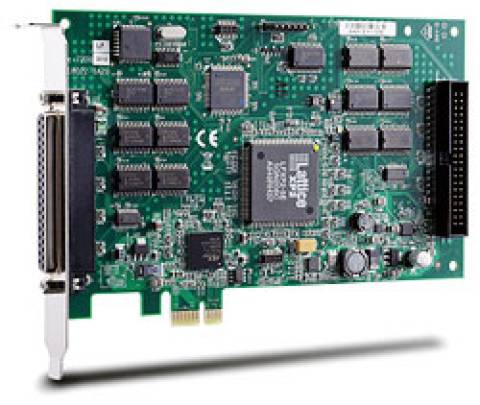

image2 Image 2 of 2 (ADLink)
