ADLink PCI-6308V 0A5
Logs
typeType
Data Acquisition (DAQ)
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
9052
dimDimensions
175mm (length) x 107mm (height)
chip Chips and specs
-> Bridge Interface
PLX PCI9052 (PCI Target I/O Accelerator)
tag Also known as
portintI/O ports
2x
2x10 2.54mm pin header
1x
  • DC-37
powerPower connectors
Empty
notes Notes

The PCI-6308A is the combination of the PCI-6308V with an 8-CH current output extended board modeled EXP-8A. The EXP-8A board includes 8 precision voltage-to-current converters/transmitters, which converts voltage output of PCI-6308V to a current source output. The EXP-8A is piggybacked onto the PCI-6308V. Therefore, the PCI-6308A provides both voltage and current outputs. The total number of analog output channel is still 8.

Last updated 2025-05-20T12:38:31Z
biosc No BIOS files available
drv No drivers available
doc 4 card documents available
Release date
File
Logs
Release date
2012-03-28
File
Logs
Release date
2014-09-23
File
Logs
Release date
2003-03-25
File
Logs
Release date
2006-12-21
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-08-16
File
Logs
Chip
Release date
File
Logs

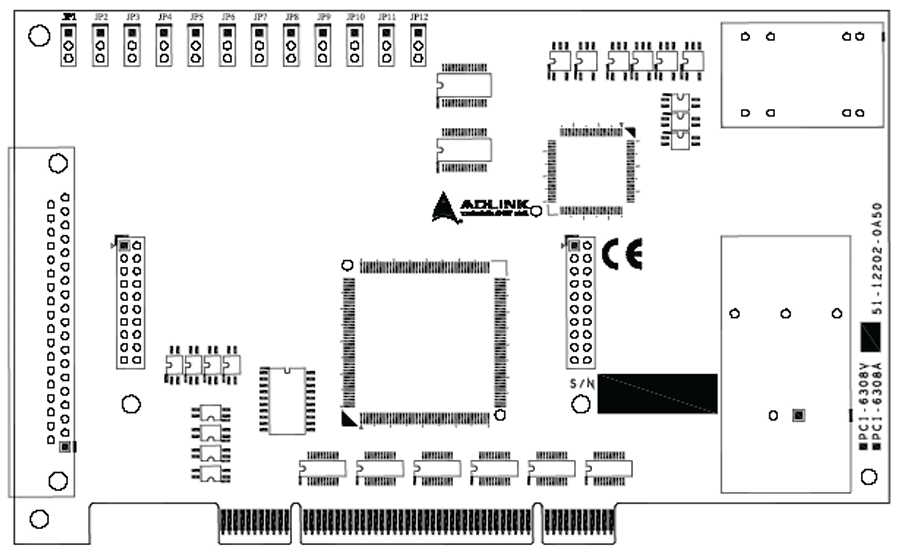

image1 Image 1 of 1 (ADLink)
