ADLink cPCI-3E20
Logs
typeType
Network
interfaceInterface
signalSignaling
32bit/33MHz CompactPCI
datePCI ID
Empty
dimDimensions
160 mm (width) x 100mm (length)
chip Chips and specs
-> Network
Intel I210 (PCIe Gigabit Ethernet)
portintI/O ports
4x
  • M12
powerPower connectors
Empty
notes Notes
  • PICMG 2.0 R3.0 compliant
  • Supports 32bit/33MHz CompactPCI bus
  • Four M12 10/100/1000BASE-T ports on faceplate with isolation 1500V AC
  • Four independent Intel® i210IT Gigabit Ethernet controllers
  • Operating temperature: -40°C ~ +85°C
  • OS support: Windows®10
  • EN50155 compliance
  • Safety: UL 94V-0 and EN45545
Last updated 2025-05-20T12:45:08Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
2021-03-17
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2021-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs

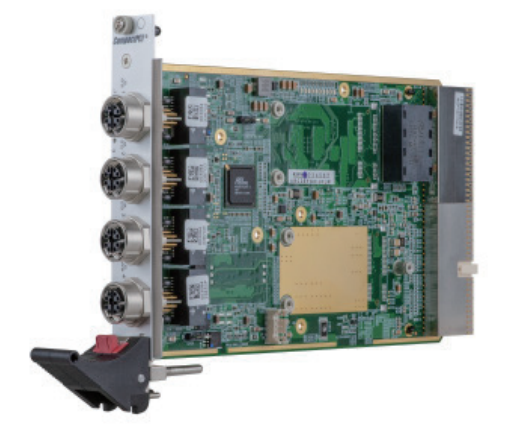

image1 Image 1 of 1 (ADLink)
