ADLink cPCI-3E12
Logs
typeType
Network
interfaceInterface
signalSignaling
32bit/33MHz CompactPCI 64bit/66MHz CompactPCI
datePCI ID
Empty
dimDimensions
160 mm (width) x 100mm (length)
chip Chips and specs
-> Network
Intel I210 (PCIe Gigabit Ethernet)
portintI/O ports
4x
  • RJ45
powerPower connectors
Empty
notes Notes
  • cPCI-3E10 (four port RJ-45 LAN card, two ports switchable to rear)
  • cPCI-3E12 (two port RJ-45 LAN card)
  • PICMG 2.0 R3.0 compliant
  • Supports 32bit/33MHz, 66bit/64MHz CompactPCI bus
  • 3U 4HP form factor, 100mmx160mm (LxW)
  • Two or four RJ-45 10/100/1000BASE-T ports on front panel
  • Intel i210 Gigabit Ethernet controllers
  • Two LAN ports switchable to rear (cPCI-3E10 only)
  • OS support: Windows 10
Last updated 2025-05-20T12:45:14Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
2021-03-17
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2021-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs

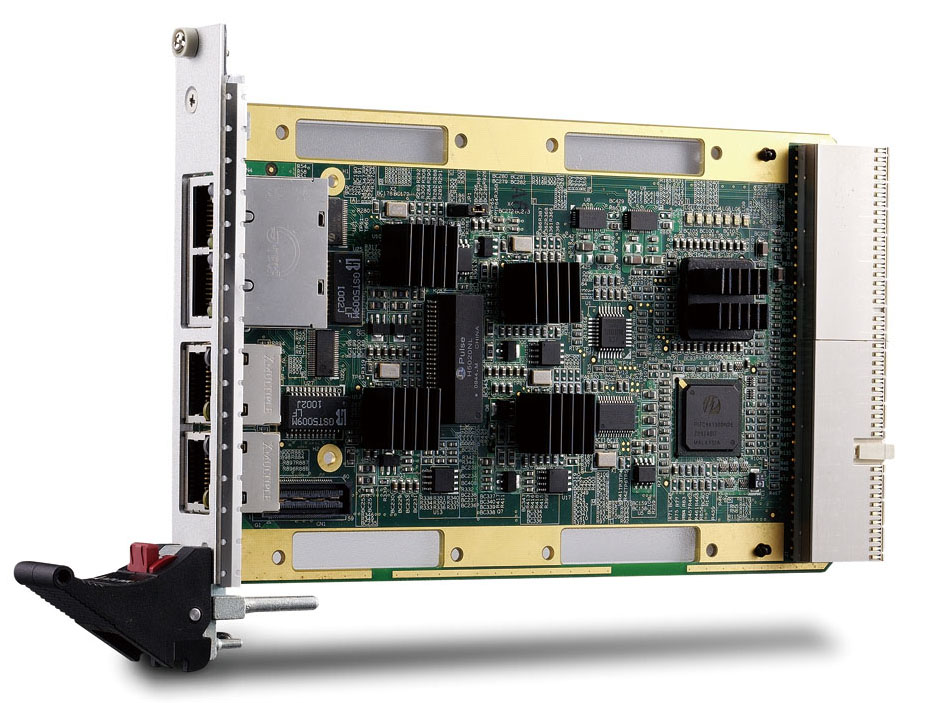

image1 Image 1 of 1 (ADLink)
