ADLink cPCI-3C10-MVB
Logs
typeType
Peripheral/Misc
interfaceInterface
signalSignaling
32bit/33MHz CompactPCI
datePCI ID
Empty
dimDimensions
160 mm (width) x 100mm (length)
chip Chips and specs
portintI/O ports
2x
  • DE-9
powerPower connectors
Empty
notes Notes
  • 3U CompactPCI Mini PCIe carrier card for MVB
  • PICMG 2.0 R3.0 compliant
  • Supports 32bit/33MHz CompactPCI bus
  • Support one Mini PCIe slot for Duagan MVB module D017M
  • Two DB-9 connectors on front panel.
  • Operating Temperature: -40°C ~ +85°C
  • EMC: EN55022, IEC1000-4-2, IEC1000-4-4
Last updated 2025-05-20T12:45:49Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
2021-03-17
File
Logs

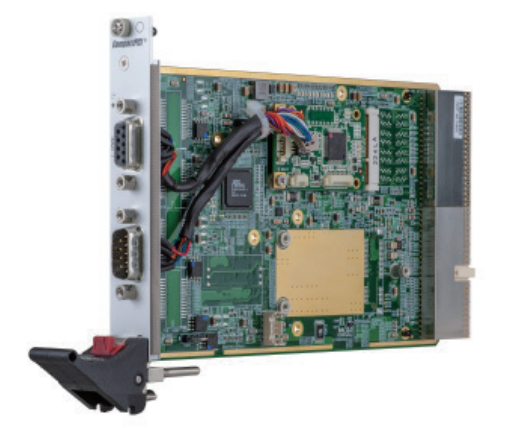

image1 Image 1 of 1 (ADLink)
