Adaptec AHA-2940UW
Logs
typeType
SCSI controller
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
8178
fccFCC ID
FGT2940UW
dimDimensions
19 mm (width) x 175mm (length) x 107mm (height)
chip Chips and specs
-> SCSI ctrl.
Adaptec AIC-7870P / AIC-7881U
MTL
Data Bus 32-bit PCI
Card Size Full height, half length
Hard Drives Supported Up to 15 Ultra-SCSI Wide devices
Floppy Drives Supported None
tag Also known as
portintI/O ports
1x
  • 2x25 2.54mm pin header
2x
  • SCSI HD68
powerPower connectors
Empty
Last updated 2025-06-01T23:45:03Z
bios 3 card BIOS files available
Version
Note
File
Logs
Version
2.20
Note
Adaptec 2940UW
File
Logs
Version
1.25
Note
Adaptec 2940UW
File
Logs
Version
1.23
Note
Adaptec 2940UW
File
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.10
OS support
Windows 9x
Arch
x86
Size
88.9KB
Filename
Name
Version
3.11
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
3.5MB
Filename
Name
Version
3.03
OS support
MS-DOS
Arch
Size
526.5KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5 (Eric Voirin (oerg866))
image3 Image 3 of 5 (CircusCat)
image4 Image 4 of 5 (Eric Voirin (oerg866))

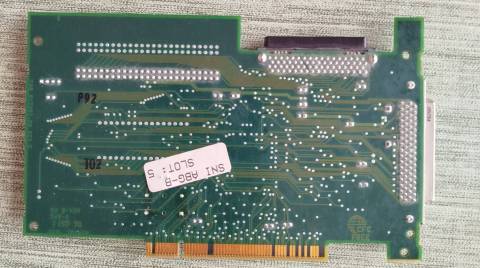

image5 Image 5 of 5 (CircusCat)
