Adaptec AHA-2940U
Logs
typeType
SCSI controller
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
7880
fccFCC ID
FGTAHA2940-42
chip Chips and specs
-> SCSI ctrl.
Adaptec AIC-7880 / AIC-7880P
MTL
Data Bus 32-bit PCI
Card Size Full height, half length
Hard Drives Supported Up to 7 Ultra-SCSI devices
Floppy Drives Supported None
tag Also known as
portintI/O ports
1x
  • 2x25 2.54mm pin header
1x
  • SCSI HD50
powerPower connectors
Empty
Last updated 2025-07-06T18:13:29Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
V1.23
Note
Adaptec AHA-2940U
File
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.10
OS support
Windows 9x
Arch
x86
Size
88.9KB
Filename
Name
Version
3.03
OS support
MS-DOS
Arch
Size
526.5KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
1999-04-09
File
Logs
Release date
1999
File
Logs

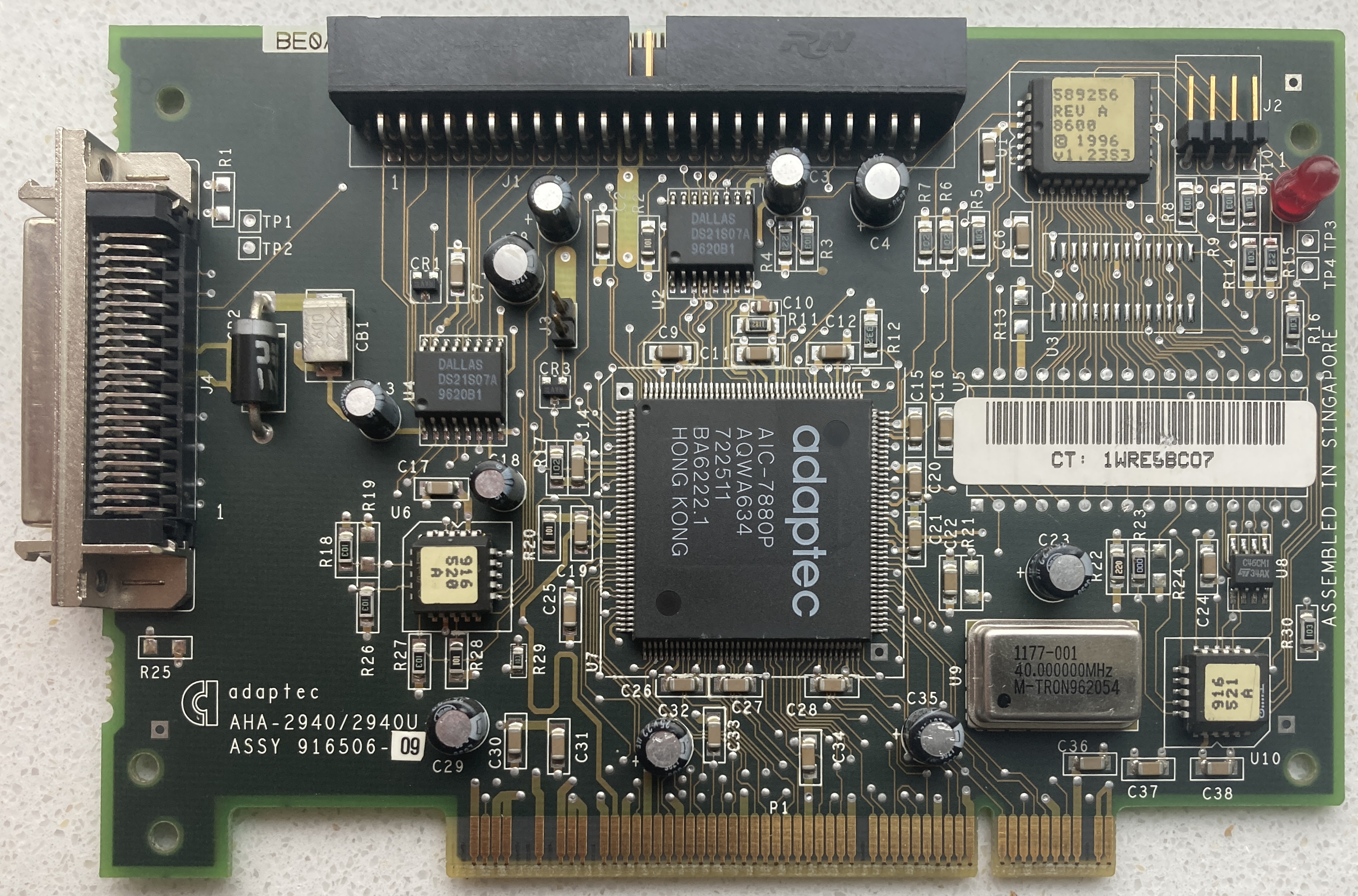

image1 Image 1 of 3 (Microhouse)

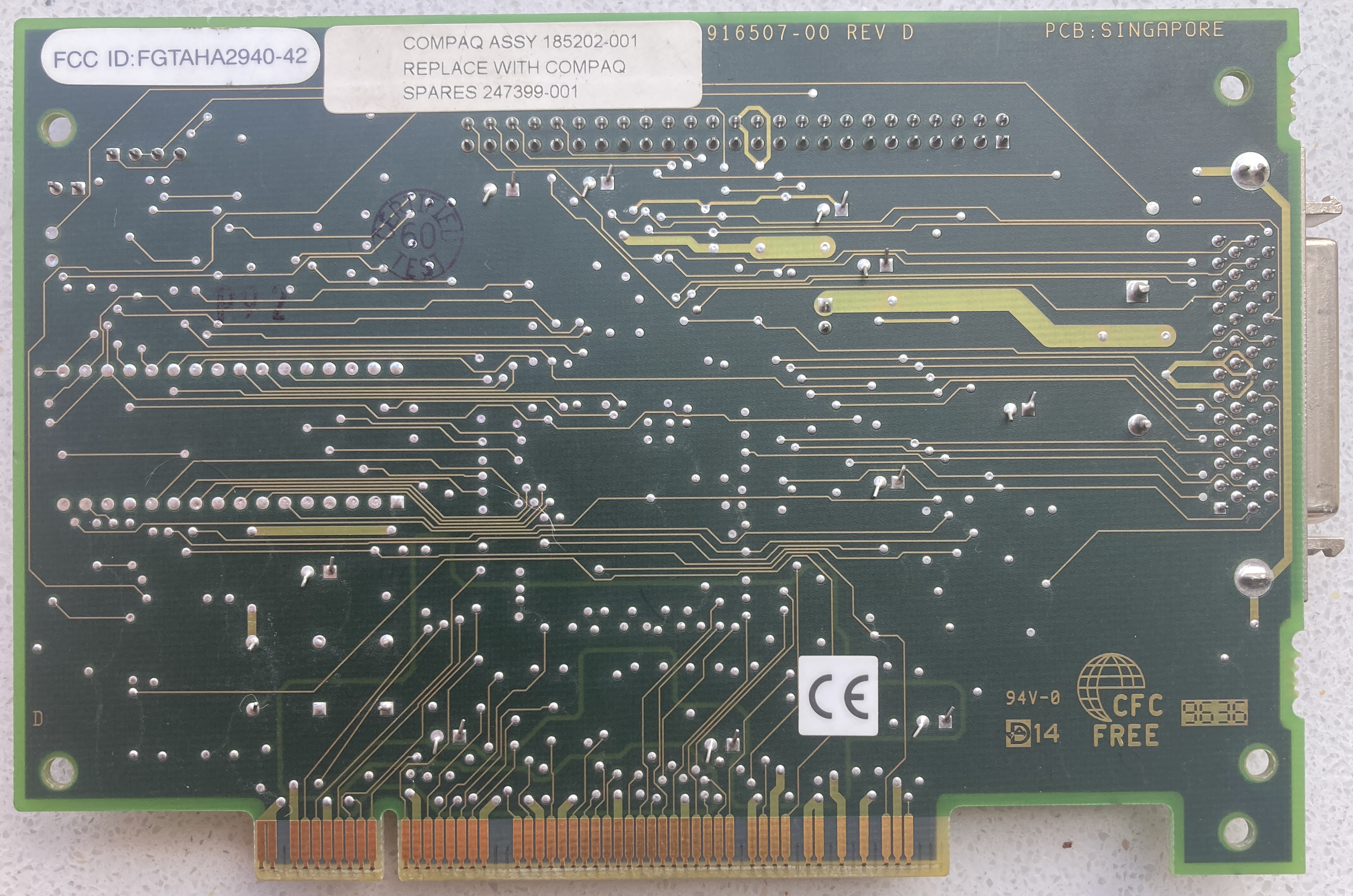

image2 Image 2 of 3 (Fo-91)
image3 Image 3 of 3 (Fo-91)
