Adaptec AHA-2940
Logs
typeType
SCSI controller
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
7870
fccFCC ID
AHA2940
chip Chips and specs
-> SCSI ctrl.
Adaptec AIC-7870
-> Signal transmitter/receiver
Dallas DS21S07A (SCSI Terminator)
MTL
Size: Half-length, full-height card
Data bus: PCI local-bus
HadProblem
Hard drive supported: Up to seven SCSI devices
Floppy drives supported: None
tag Also known as
portintI/O ports
1x
  • 2x25 2.54mm pin header
1x
  • SCSI HD50
powerPower connectors
Empty
Last updated 2025-07-06T18:12:52Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
V1.11
Note
Adaptec AHA-2940
File
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.10
OS support
Windows 9x
Arch
x86
Size
88.9KB
Filename
Name
Version
3.11
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
3.5MB
Filename
Name
Version
3.03
OS support
MS-DOS
Arch
Size
526.5KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
1995
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-02-21
File
Logs

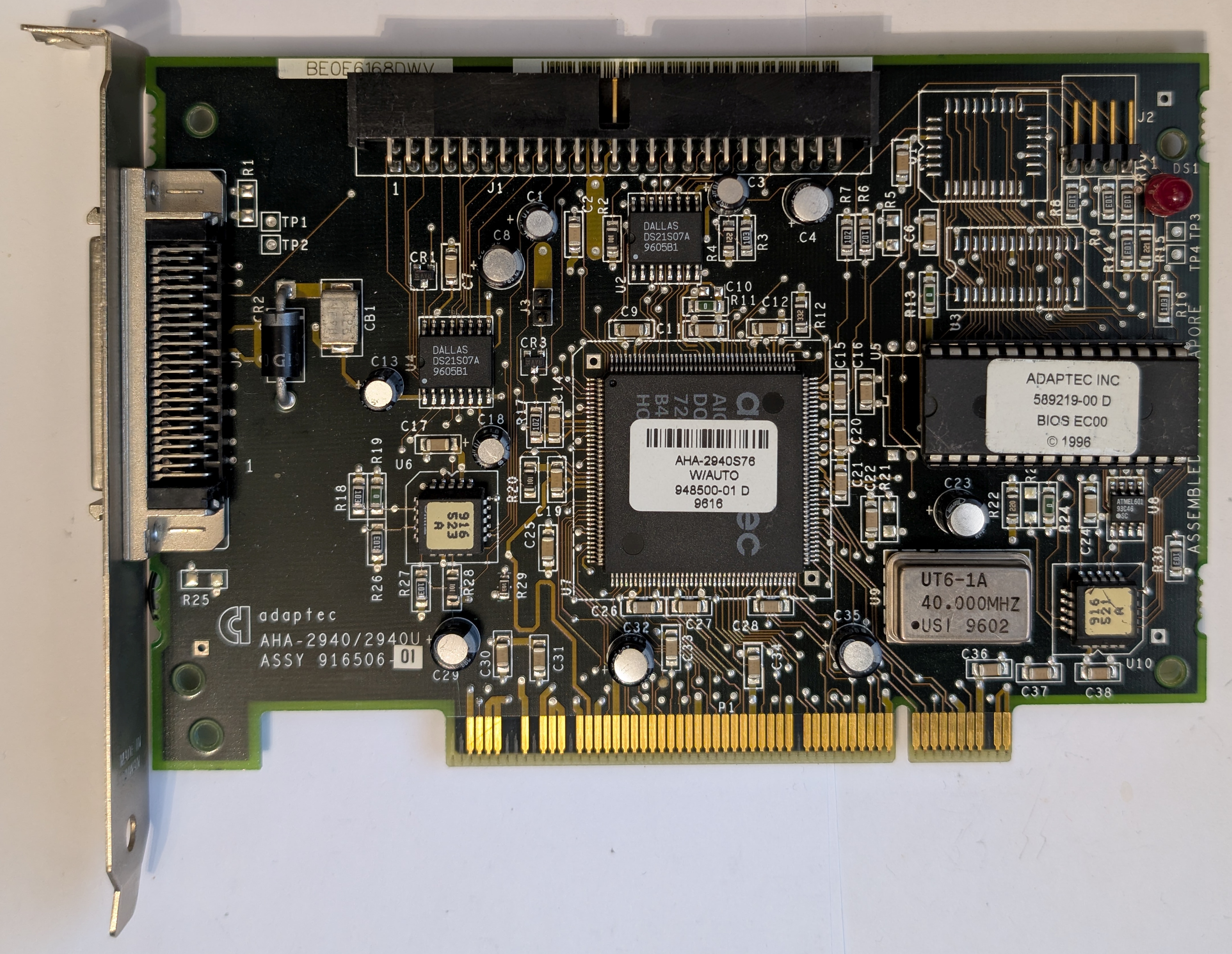

image1 Image 1 of 6 (Microhouse)

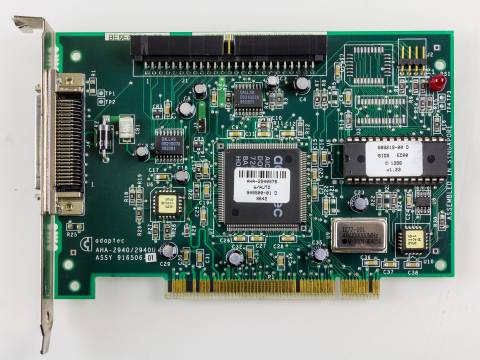

image2 Image 2 of 6 (Raimond Spekking (Raymond))

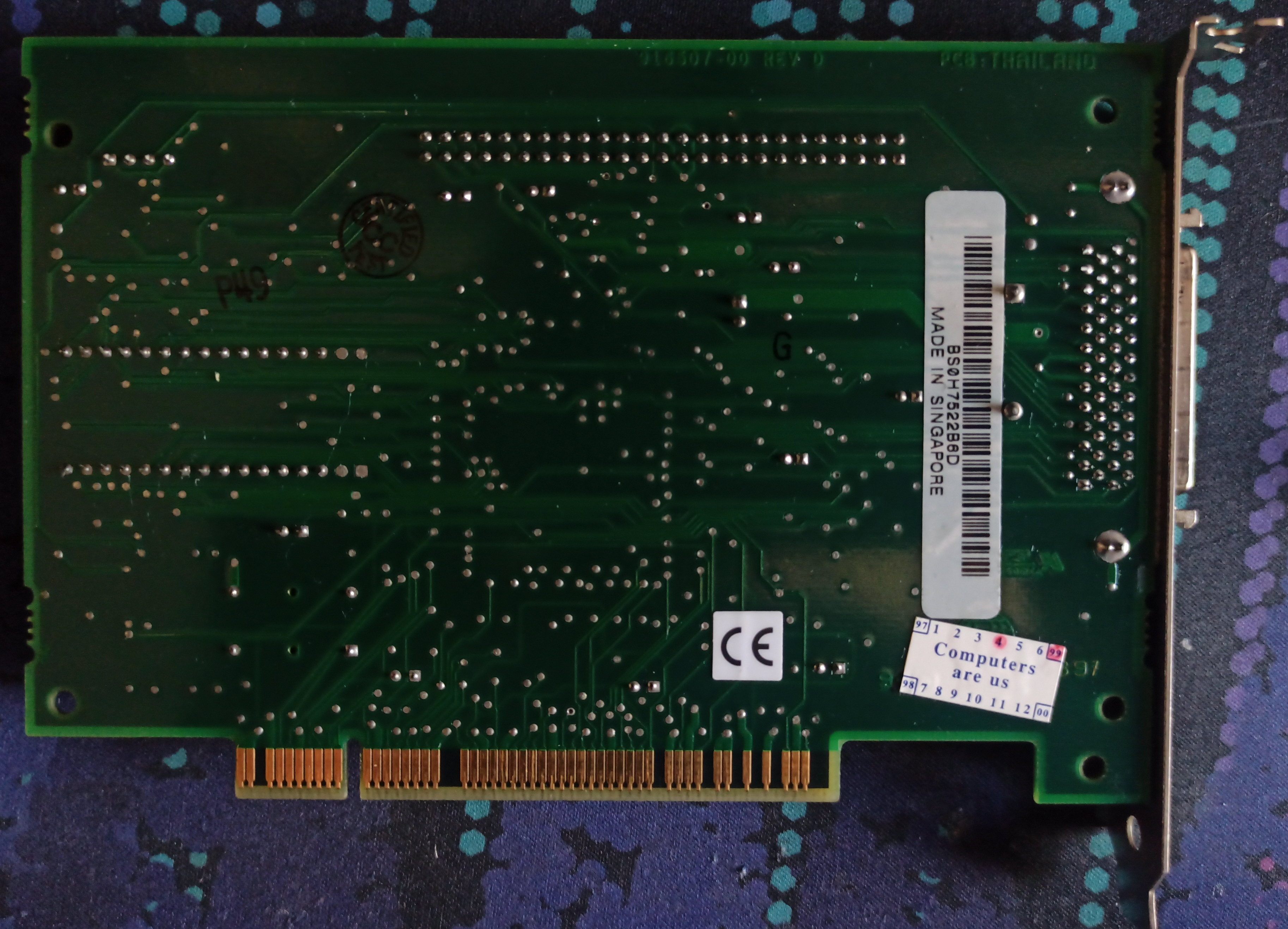

image3 Image 3 of 6 (Eric Voirin (oerg866))

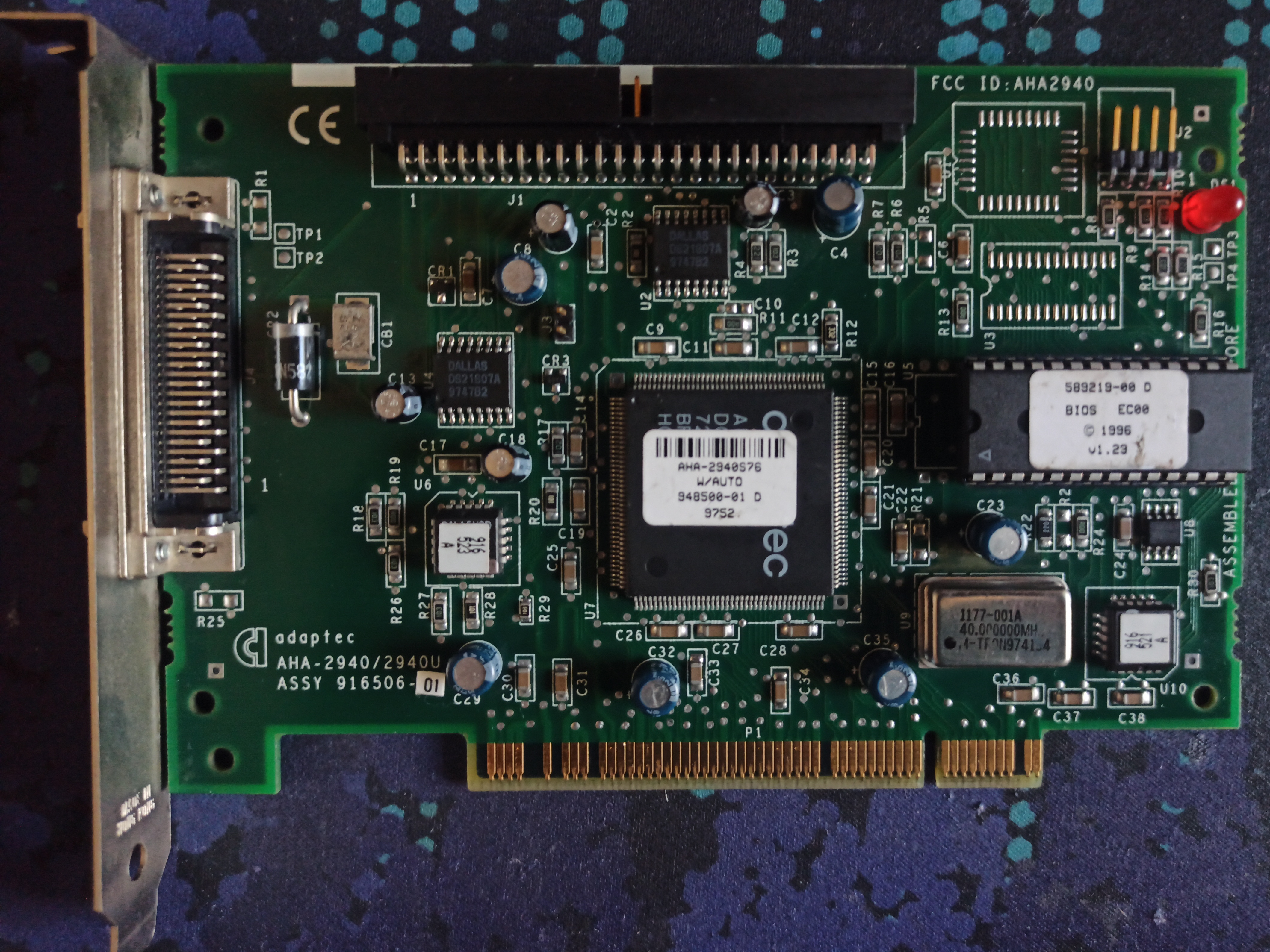

image4 Image 4 of 6 (fkonewheel)

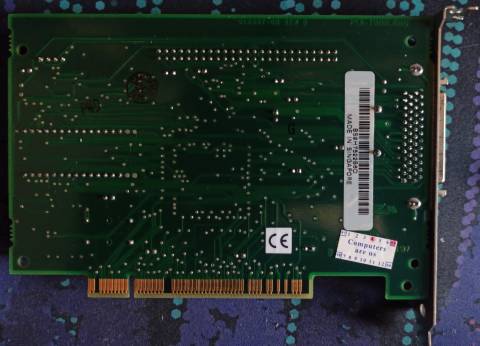

image5 Image 5 of 6 (Eric Voirin (oerg866))

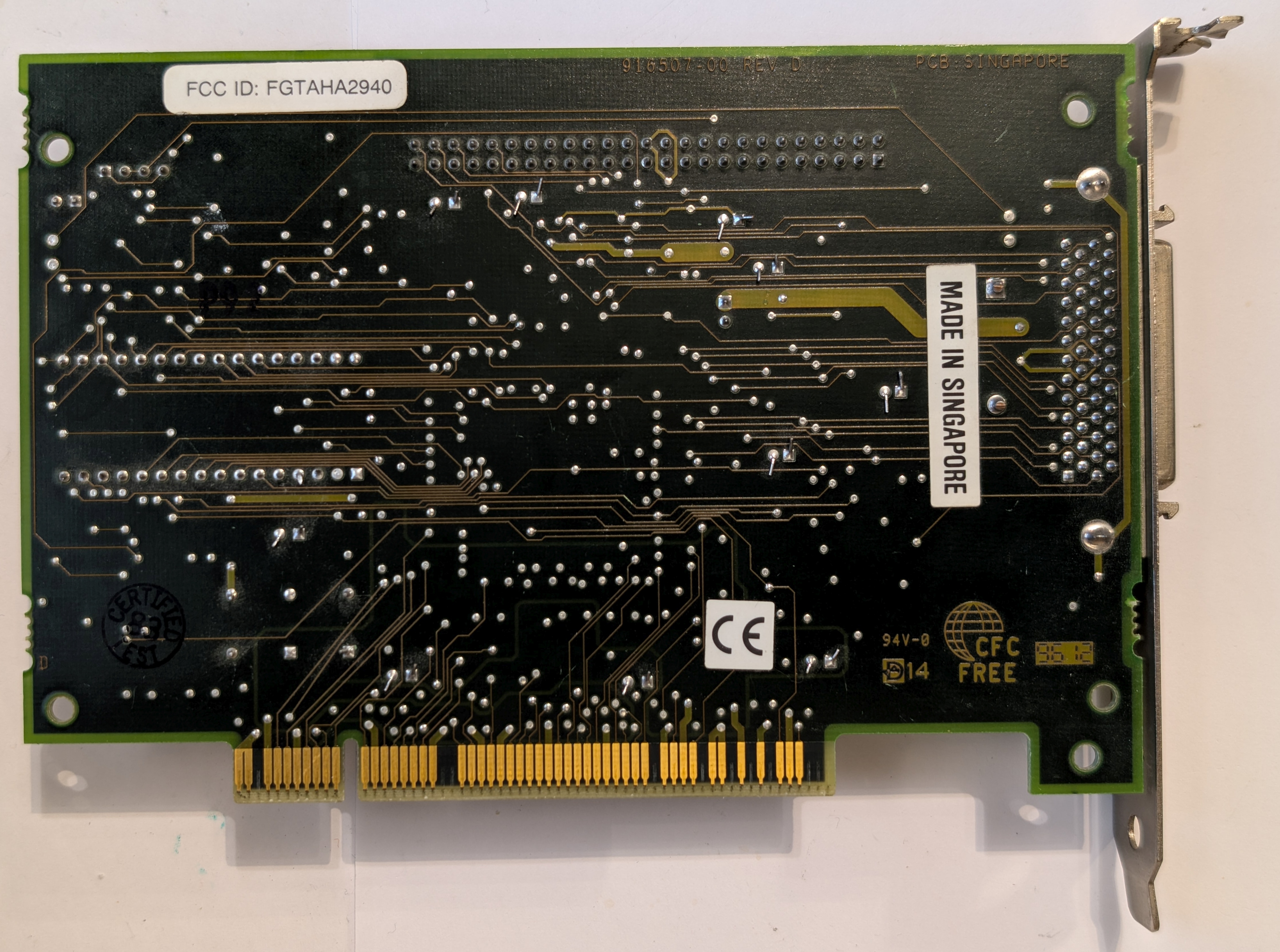

image6 Image 6 of 6 (fkonewheel)
