Adaptec AHA-2842VL
Logs
typeType
Floppy controller SCSI controller
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
Empty
fccFCC ID
FGT2842VL
chip Chips and specs
-> Bridge Interface
Adaptec AIC-3410P (VLB to EISA Bridge)
-> Floppy ctrl.
Intel 82077 (Floppy Disk Controller)
-> SCSI ctrl.
Adaptec AIC-7770(P) (ISA / EISA SCSI Controller)
MTL
Size: Full-lengh, full-height card
Data bus: 32-bit VL-Bus
Hard drive supported: Up to seven SCSI devices
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives
portintI/O ports
1x
  • 2x17 2.54mm pin header, FDD
1x
  • 2x25 2.54mm pin header, SCSI-1 (IDC50/C50), SCSI-2 Narrow (IDC50/C50)
1x
  • SCSI HD50, SCSI-1 (IDC50/C50)
powerPower connectors
Empty
Last updated 2025-10-08T11:28:41Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
1.01
Note
File
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
Size
32.3KB
Filename
Name
Version
2.02
OS support
OS/2 2.x
Arch
Size
30.4KB
Filename
Name
Version
3.11
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
3.5MB
Filename
Name
Version
3.03
OS support
MS-DOS
Arch
Size
526.5KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-05
File
Logs
Chip
Release date
1991-05
File
Logs
Chip
Release date
1992-09
File
Logs
Chip
Release date
File
Logs

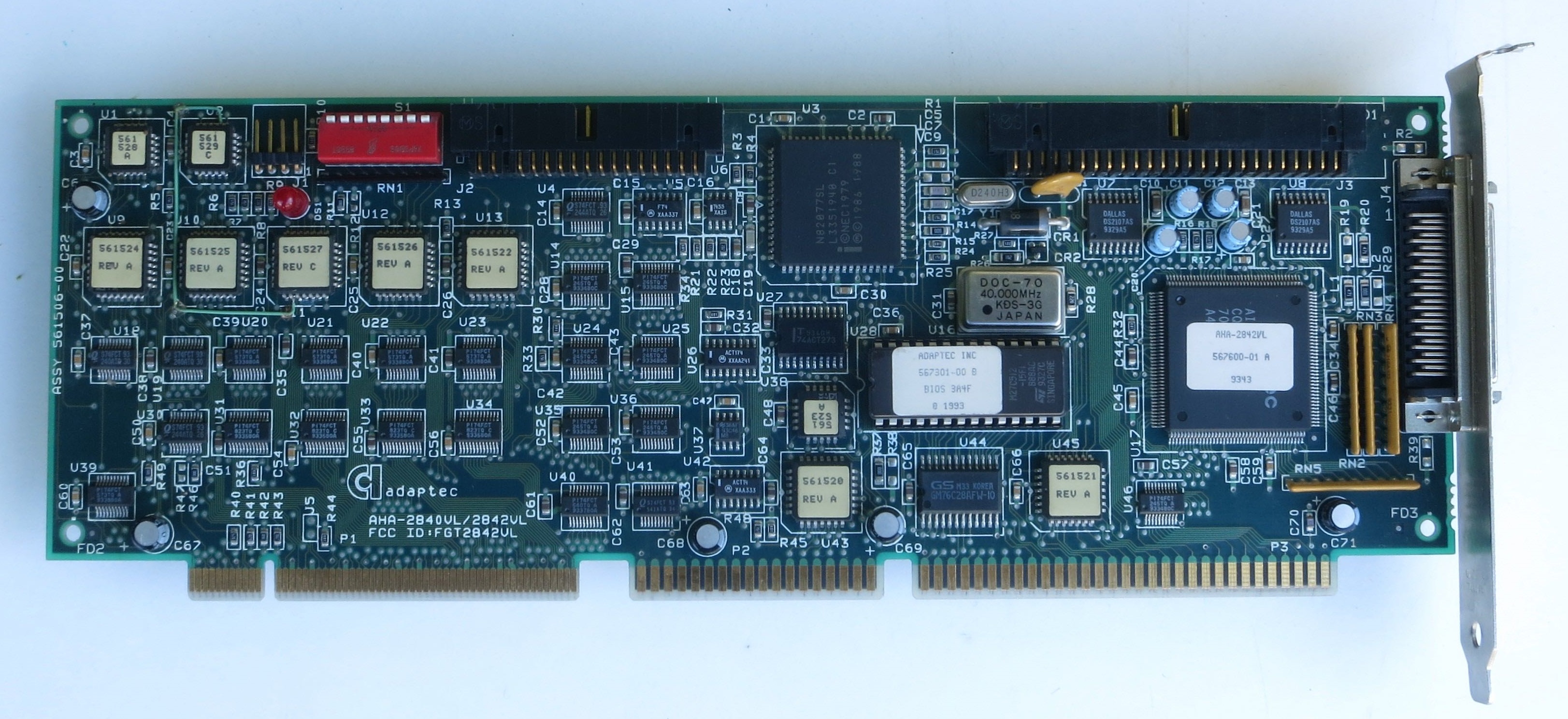

image1 Image 1 of 4 (Microhouse)

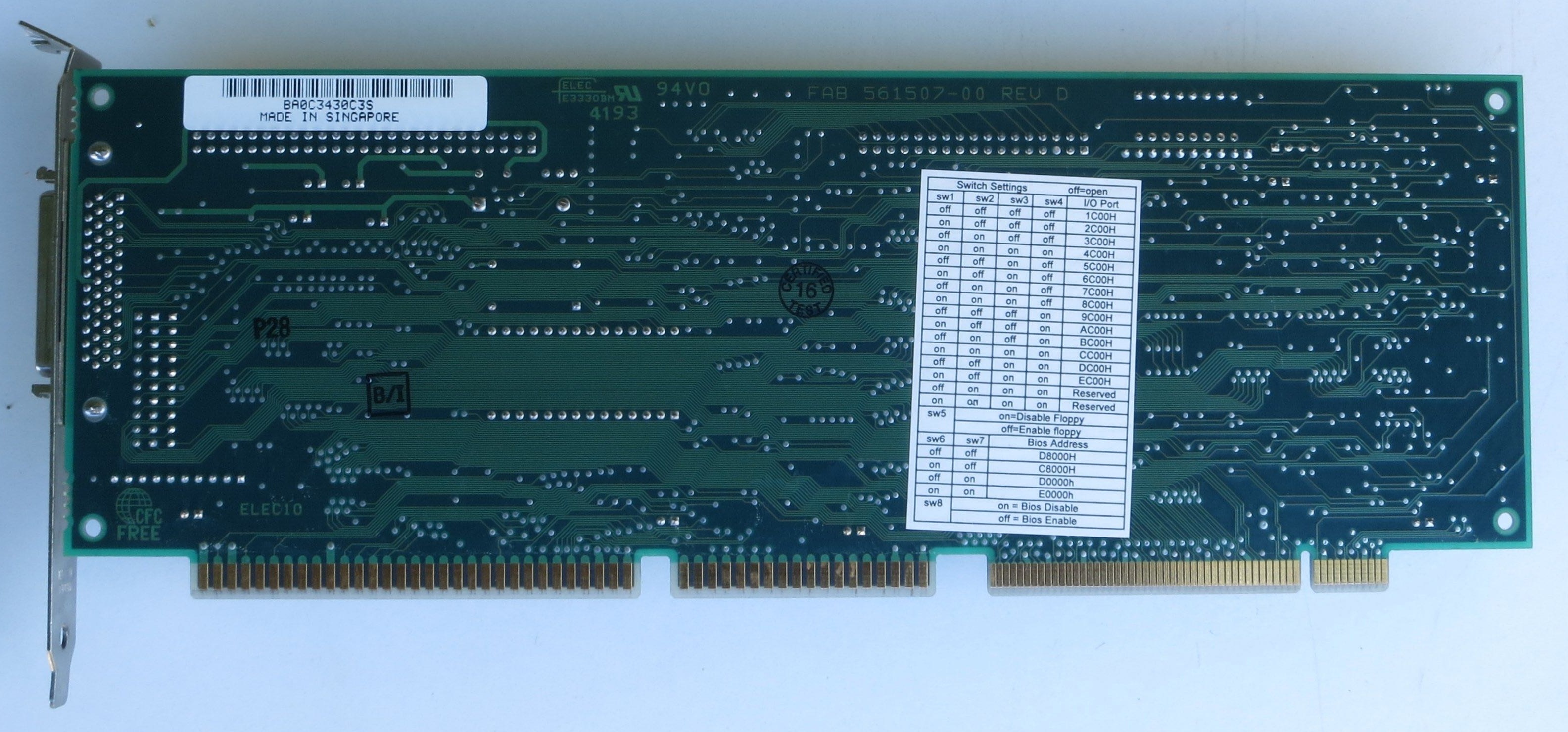

image2 Image 2 of 4 (csimir)

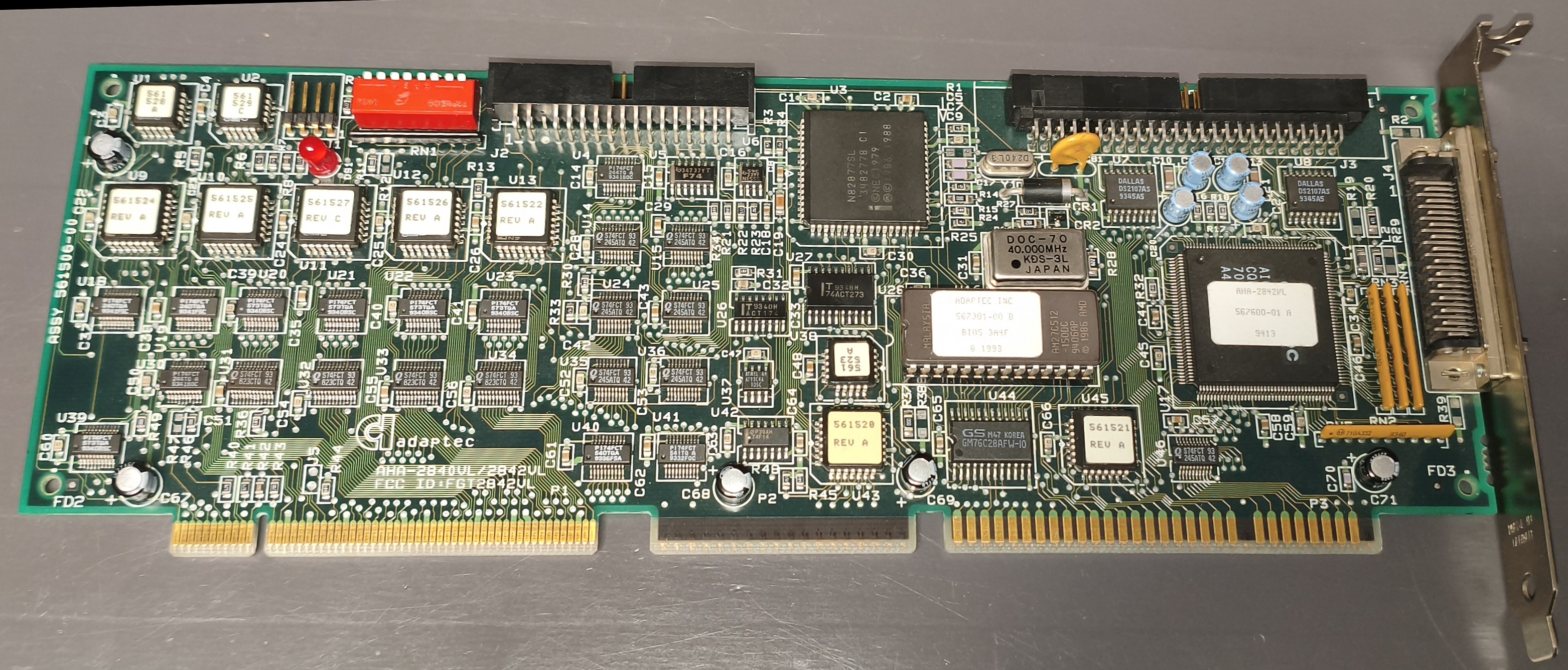

image3 Image 3 of 4 (AncapDude)
image4 Image 4 of 4 (csimir)
