Adaptec AHA-1740A
Logs
typeType
SCSI controller
interfaceInterface
signalSignaling
32-bit EISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Bridge Interface
Intel 82355 (Bus Master Interface Controller)
-> SCSI ctrl.
Adaptec AIC-565 Adaptec AIC-6251 Adaptec AIC-4600 Adaptec AIC-575
MTL
Size: Full-length, full-height card
Data bus: 32-bit, EISA
Hard drive supported: Up to seven SCSI devices
portintI/O ports
1x
  • 2x25 2.54mm pin header
1x
  • SCSI HD50
powerPower connectors
Empty
Last updated 2024-11-21T00:05:03Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.11
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
3.5MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1993-09
File
Logs
Chip
Release date
1994-05
File
Logs

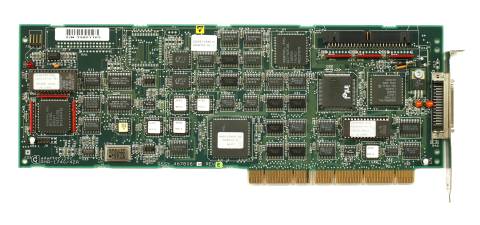

image1 Image 1 of 1 (Appaloosa)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
