Adaptec AHA-1542C
Logs
typeType
Floppy controller SCSI controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Processor
Zilog Z80 (Z84C0010VEC)
MTL
HadProblem
Microarchitecture
CPUID
Process node
Core
Bus speed 10MHz
Frequency 10MHz
Multiplier 1x
Power
Voltage 5V
tag Also known as
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x25 2.54mm pin header
1x
  • SCSI HD50
powerPower connectors
Empty
Last updated 2025-05-28T14:19:10Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.11
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
3.5MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

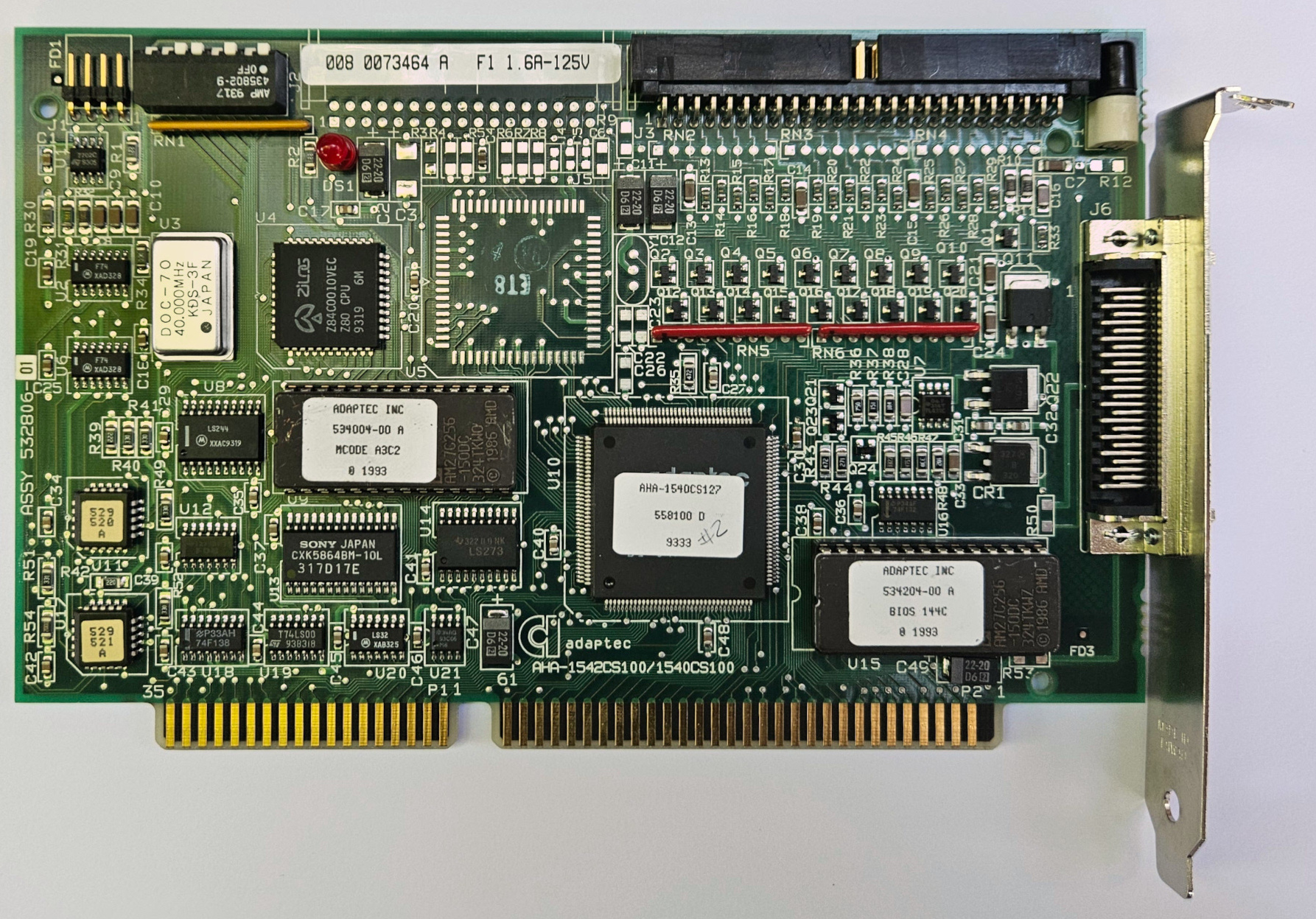

image1 Image 1 of 2 (Microhouse)
image2 Image 2 of 2 (pshipkov)
