Adaptec AHA-1542A
Logs
typeType
Floppy controller SCSI controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
FGT5AG1542A
chip Chips and specs
-> Floppy ctrl.
Intel 82072 (Floppy Disk Controller)
-> Processor
Intel 8085
-> SCSI ctrl.
Adaptec AIC-6250 Adaptec AIC-580
MTL
Size: Full-length, full-height card
Data bus: 16-bit, ISA
Hard drives supported: Up to seven SCSI devices
Floppy drives supported: Two 360KB, 720KB, 1.2MB or 1.44MB
tag Also known as
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x25 2.54mm pin header
1x
  • 50-pin Centronics Connector
powerPower connectors
Empty
Last updated 2025-05-28T14:48:36Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.11
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
3.5MB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1989-10
File
Logs
Chip
Release date
1997-06-13
File
Logs
image1 Image 1 of 3 (Microhouse)

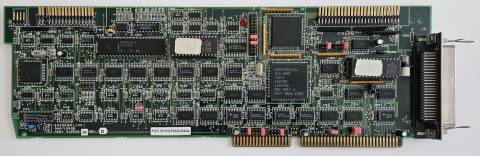

image2 Image 2 of 3 (pshipkov)

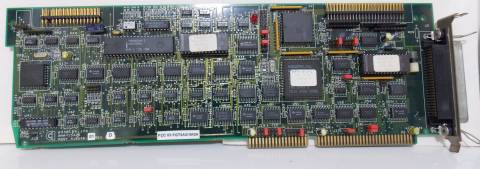

image3 Image 3 of 3 (Petros Savvas)
