Adaptec AHA-1520B
Logs
typeType
SCSI controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> SCSI ctrl.
Adaptec AIC-6370 (ISA SCSI Controller)
MTL
Data Bus 16-bit ISA
Card Size Three-quarter length, half-height card
Card Type Hard drive controller card
Hard Drives supported Up to 7 SCSI devices
Floppy drives supported None
portintI/O ports
1x
  • 2x25 2.54mm pin header, SCSI-1 (IDC50/C50), SCSI-2 Narrow (IDC50/C50)
1x
  • SCSI HD50, SCSI-1 (IDC50/C50), SCSI-2 Narrow (IDC50/C50)
powerPower connectors
Empty
notes Notes

AHA-1510/20/22: AIC-6260AL
AHA-1510A/20A/22A: AIC-6360
AHA-1510B/20B/22B: AIC-6370
AHA-1510x: SCSI
AHA-1520x: BIOS, SCSI
AHA-1522x: floppy,BIOS,SCSI

Last updated 2025-05-28T14:14:49Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
1.15
Note
File
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.11
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
3.5MB
Filename
Name
Version
3.03
OS support
MS-DOS
Arch
Size
526.5KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs

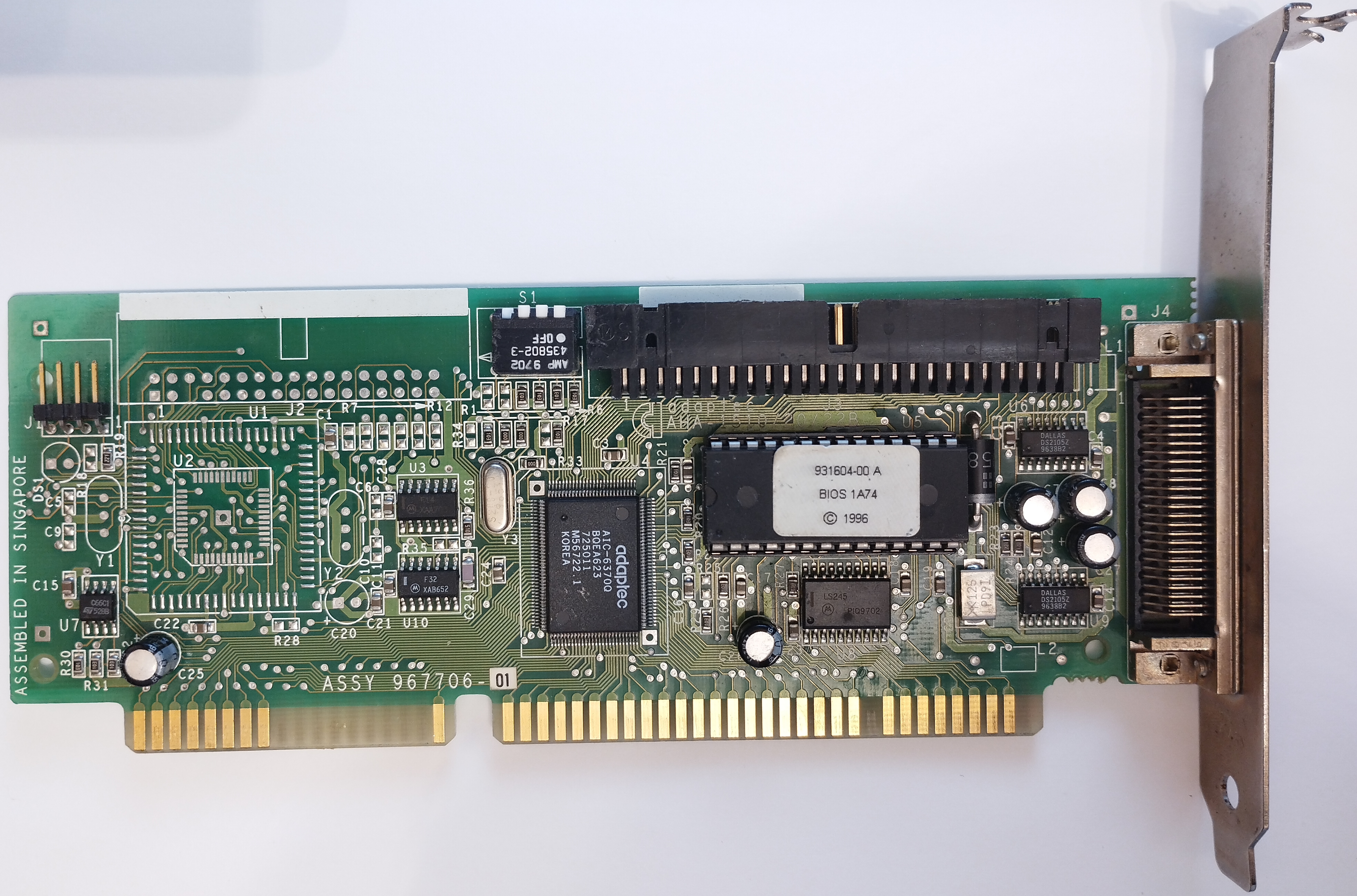

image1 Image 1 of 5 (Microhouse)

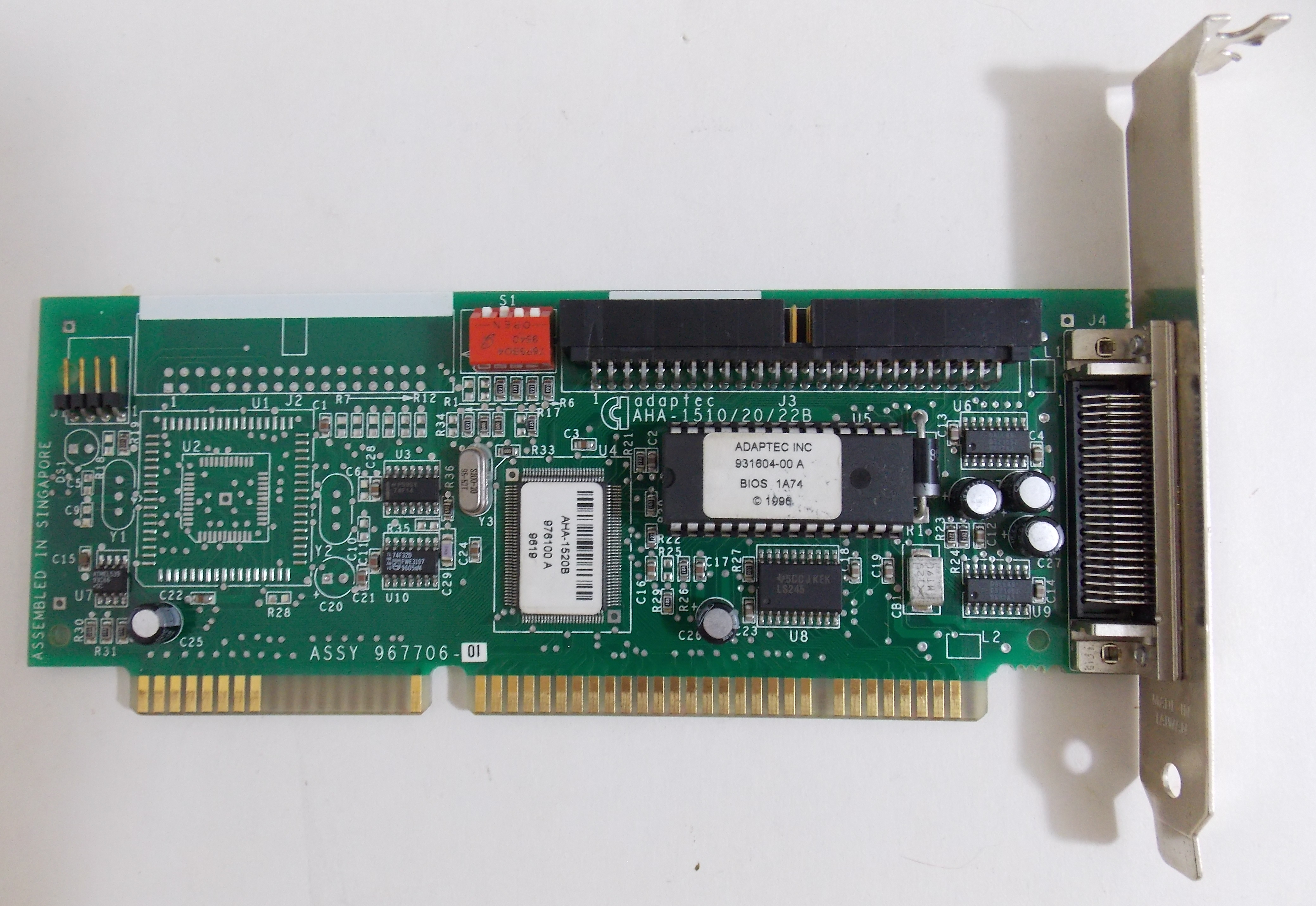

image2 Image 2 of 5 (Petros Savvas)

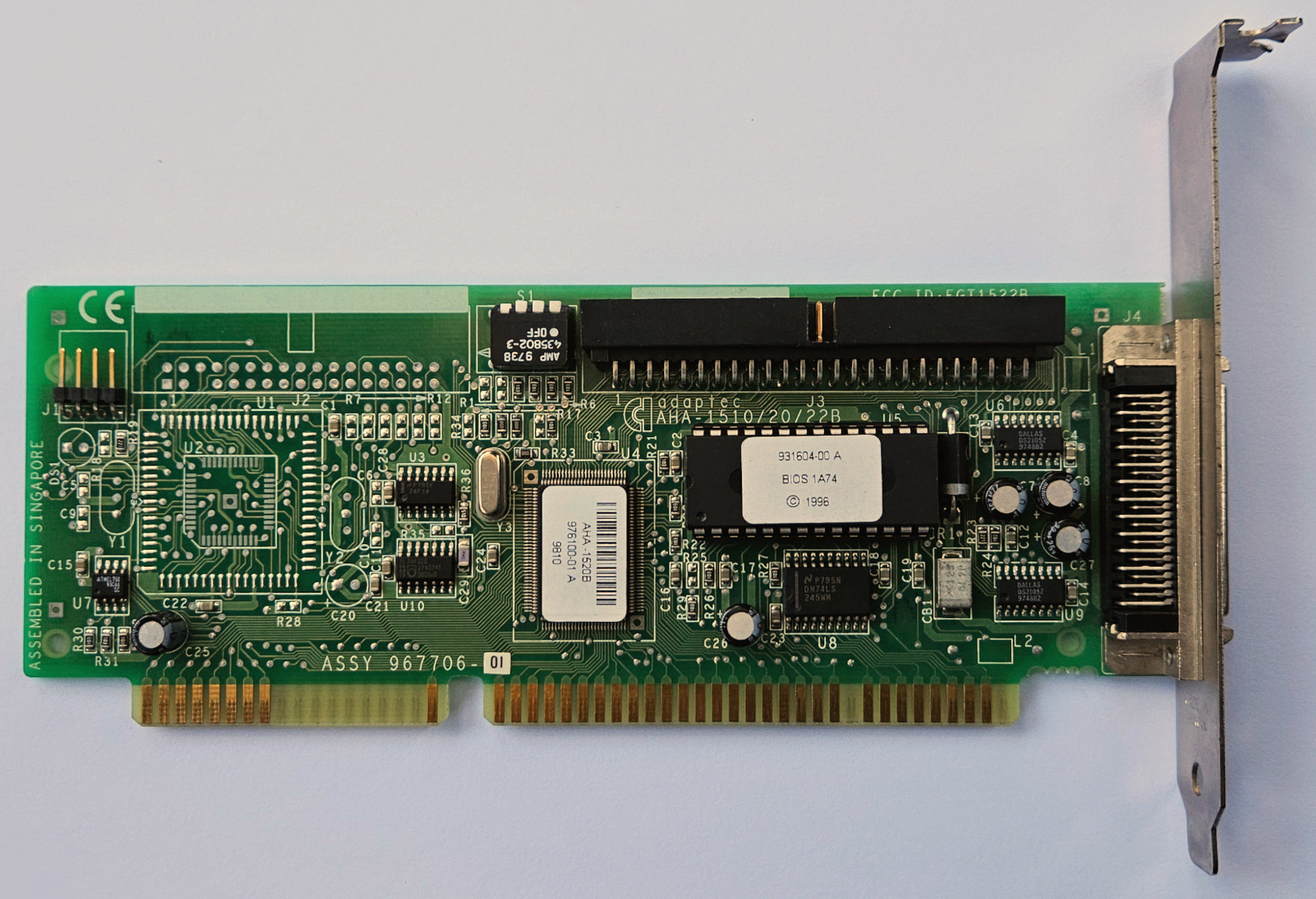

image3 Image 3 of 5 (Eric Voirin (oerg866))
image4 Image 4 of 5 (pshipkov)

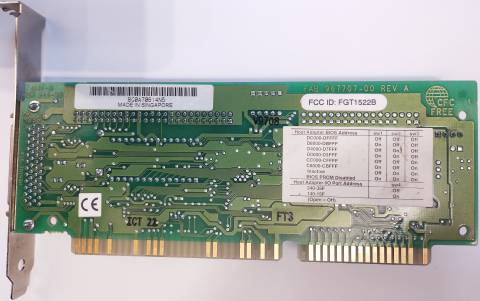

image5 Image 5 of 5 (Eric Voirin (oerg866))
