Adaptec AAA-UDMA
Logs
typeType
IDE controller RAID controller
interfaceInterface
signalSignaling
32-bit PCI
datePCI ID
0020 002F 0030 003F 001F 7815
ramRAM type
SDR UDIMM ECC
ramRAM size
128MB
chip Chips and specs
-> Processor
Intel 80960RS (i960® RS I/O Processor)
-> Programmable Logic
Altera EPF6024A (FLEX 6000)
-> RAID ctrl.
Adaptec AIC-7815 (RAID+Memory Controller IC) Adaptec AIC-7195
-> SCSI ctrl.
Adaptec AIC-7890 QLogic FAS466
portintI/O ports
4x
  • 2x20 2.54mm pin header
powerPower connectors
Empty
notes Notes

the 24k gate FPGA (EPF6024) is used as SCSI-to-IDE translator + UDMA controller

Last updated 2024-12-26T19:22:04Z
biosc No card BIOS files available
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
Build 20107 (beta?)
Note
For motherboard integrated SCSI controller
File
Logs
Version
3.10
Note
For motherboard integrated SCSI controller
File
Logs
Version
3.00
Note
For motherboard integrated SCSI controller
File
Logs
Version
2.50
Note
For motherboard integrated SCSI controller
File
Logs
Version
2.20
Note
For motherboard integrated SCSI controller
File
Logs
Version
2.10
Note
For motherboard integrated SCSI controller
File
Logs
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-03
File
Logs

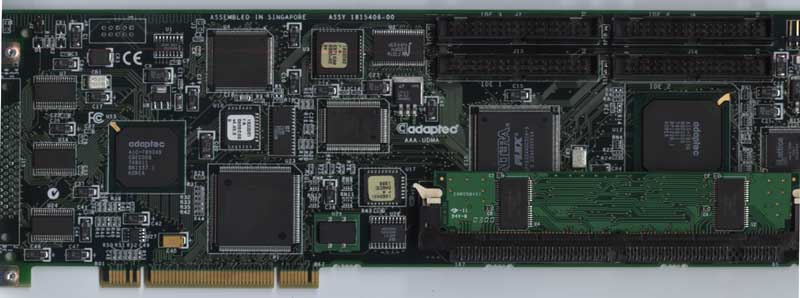

image1 Image 1 of 1 (AnandTech)
