Adaptec AAA-131U2
Logs
typeType
SCSI controller
interfaceInterface
signalSignaling
32-bit PCI
datePCI ID
0020 002F 0030 003F 001F 7815 0024 B152
ramRAM type
168-pin EDO UDIMM
ramRAM size
64MB2MB32MB16MB
chip Chips and specs
-> Bridge Interface
Intel 21152 (PCI to PCI Bridge)
-> RAID ctrl.
Adaptec AIC-7815 (RAID+Memory Controller IC)
-> SCSI ctrl.
Adaptec AIC-7890 Adaptec AIC-3860
portintI/O ports
1x
  • 2x25 2.54mm pin header, Ultra2 Wide SCSI
2x
  • SCSI HD68, Ultra2 Wide SCSI
powerPower connectors
Empty
Last updated 2025-09-27T23:56:03Z
biosc No card BIOS files available
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
Build 20107 (beta?)
Note
For motherboard integrated SCSI controller
File
Logs
Version
3.10
Note
For motherboard integrated SCSI controller
File
Logs
Version
3.00
Note
For motherboard integrated SCSI controller
File
Logs
Version
2.50
Note
For motherboard integrated SCSI controller
File
Logs
Version
2.20
Note
For motherboard integrated SCSI controller
File
Logs
Version
2.10
Note
For motherboard integrated SCSI controller
File
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.20.32
OS support
Windows 2000
Arch
x86
Size
175KB
Filename
Name
Version
4.2
OS support
MS-DOS
Arch
x86
Size
242.1KB
Filename
Name
Version
3.03
OS support
MS-DOS
Arch
Size
526.5KB
Filename
Name
Version
4.2
OS support
UnixWare
Arch
x86
Size
537.9KB
Filename
doc 4 card documents available
Release date
File
Logs
Release date
2000-04
File
Logs
Release date
1999-02
File
Logs
Release date
1999-02
File
Logs
Release date
2005-01-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-04
File
Logs
Chip
Release date
File
Logs

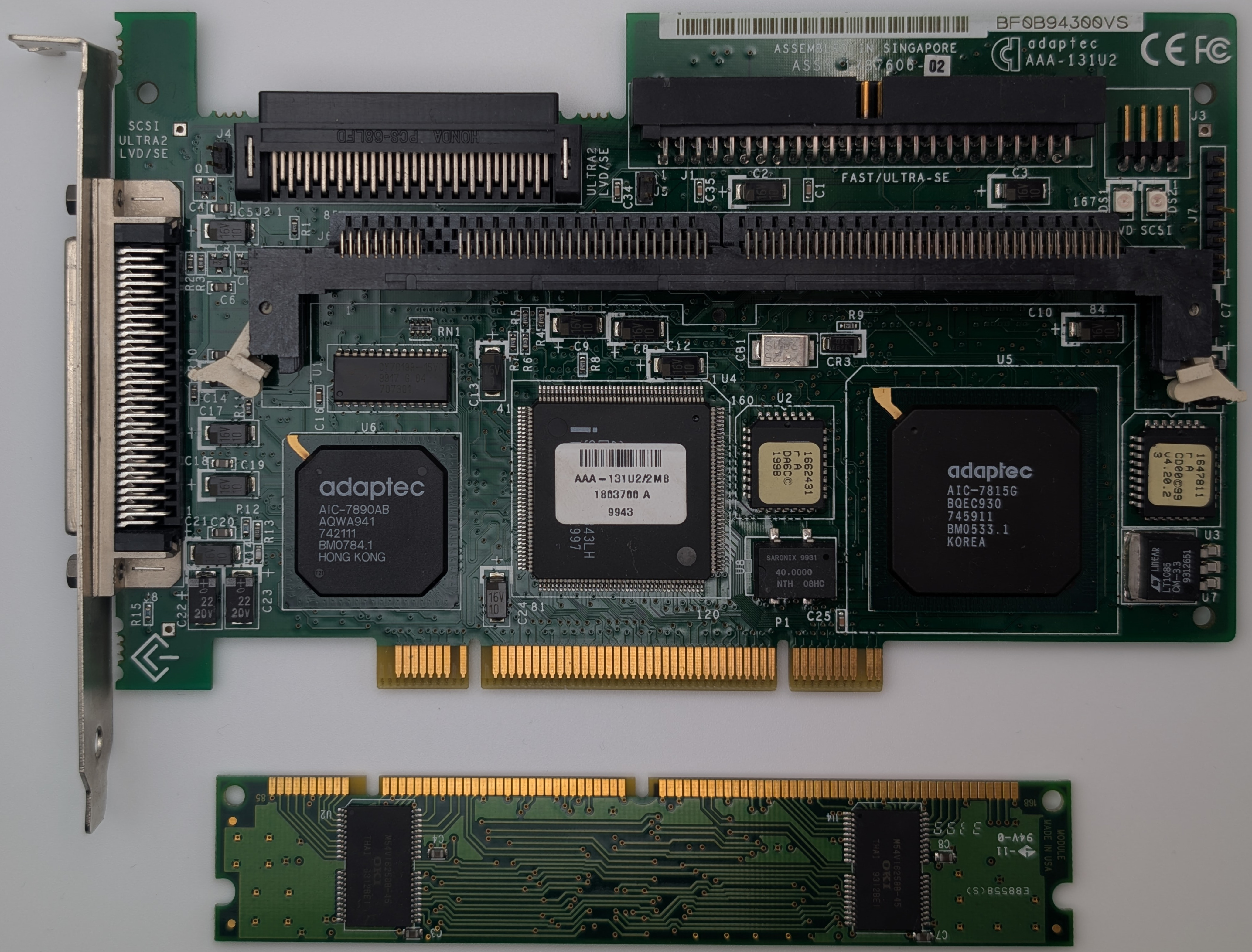

image1 Image 1 of 2 (deksor)

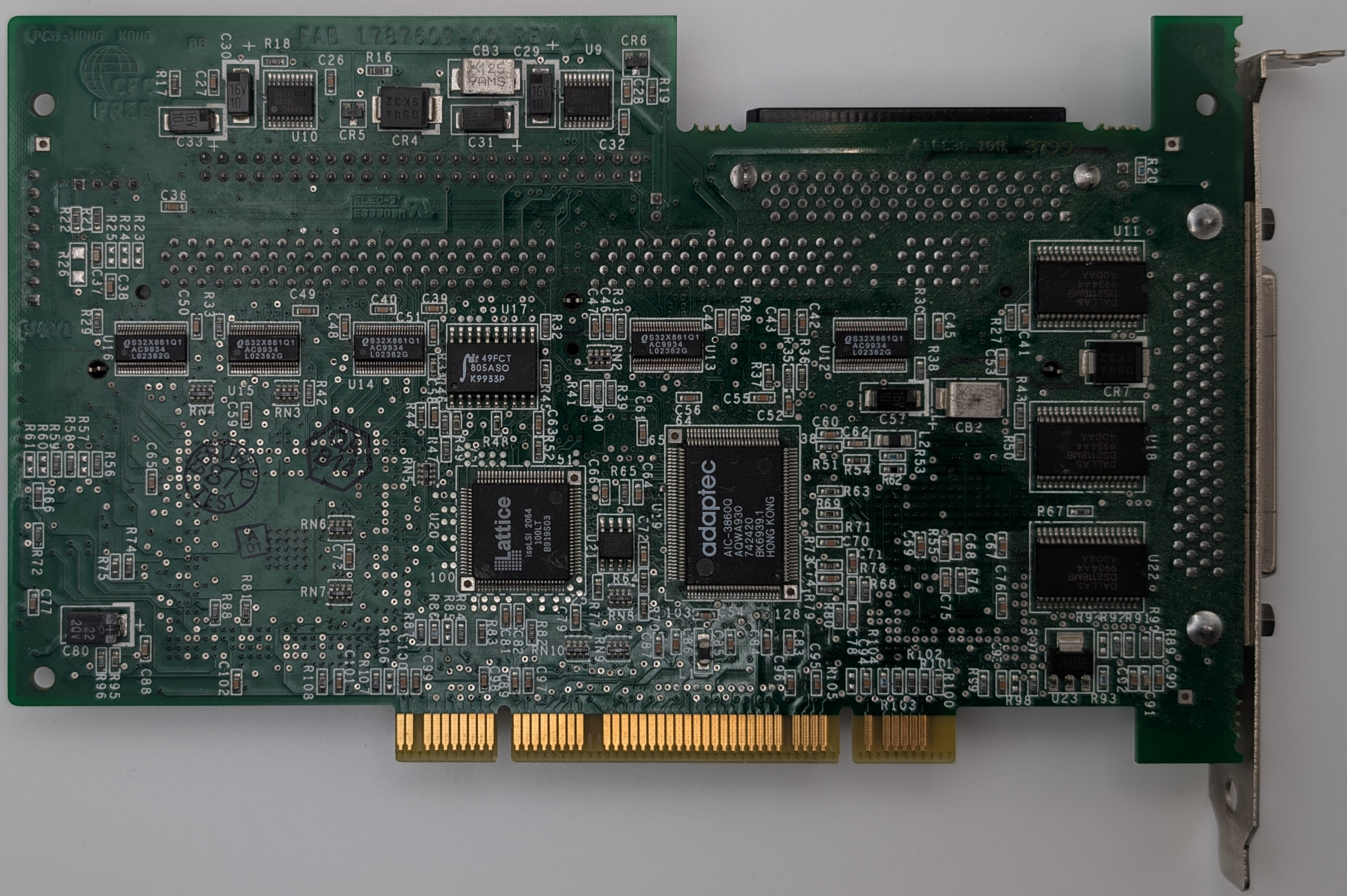

image2 Image 2 of 2 (deksor)
