ACTIX SYSTEMS, INC. Graphics Engine 32 VL LP
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
Empty
fccFCC ID
IXBGE9303
ramRAM type
DRAM
ramRAM size
1MB2MB
chip Chips and specs
-> RAMDAC
S3 86C708 (GENDAC)
-> Video
S3 86C805-P
MTL
Category Video
Memory Type DRAM
Data Bus Type 32-bit VESA local bus
Video Processor S3
Video Types Supported XVGA
Maximum Onboard Memory 2MB
Highest Resolution Supported 1280 x 1024
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header, VESA Feature Connector
1x
  • DE-15, VGA
powerPower connectors
Empty
Last updated 2025-11-07T11:53:07Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.41
OS support
Windows 3.1x
Arch
x86
Size
445.7KB
Filename
doc No card documents available

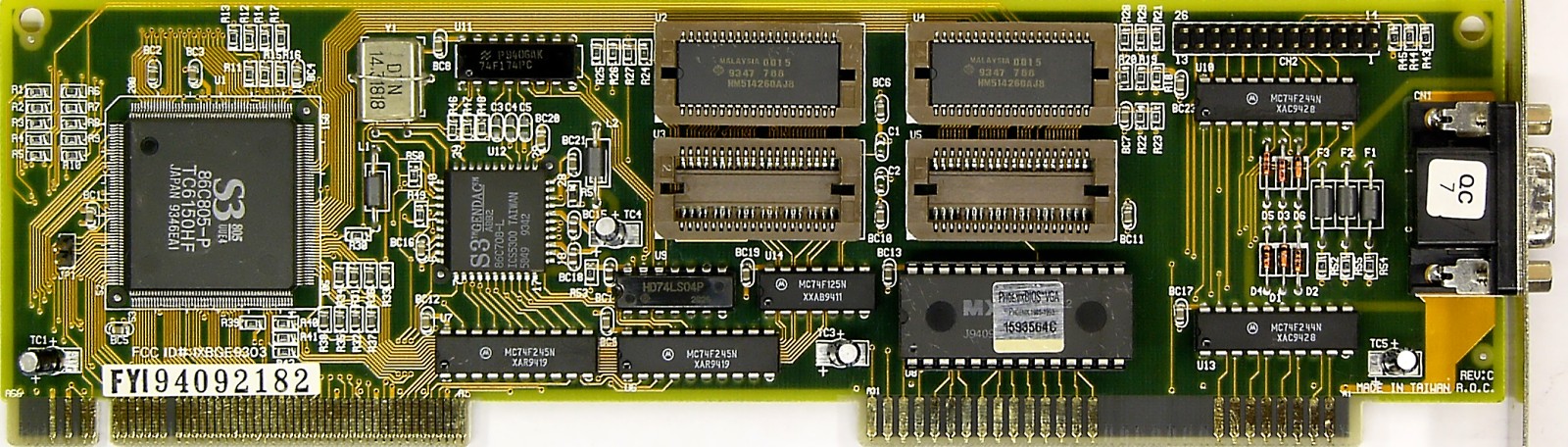

image1 Image 1 of 2 (Palcal)

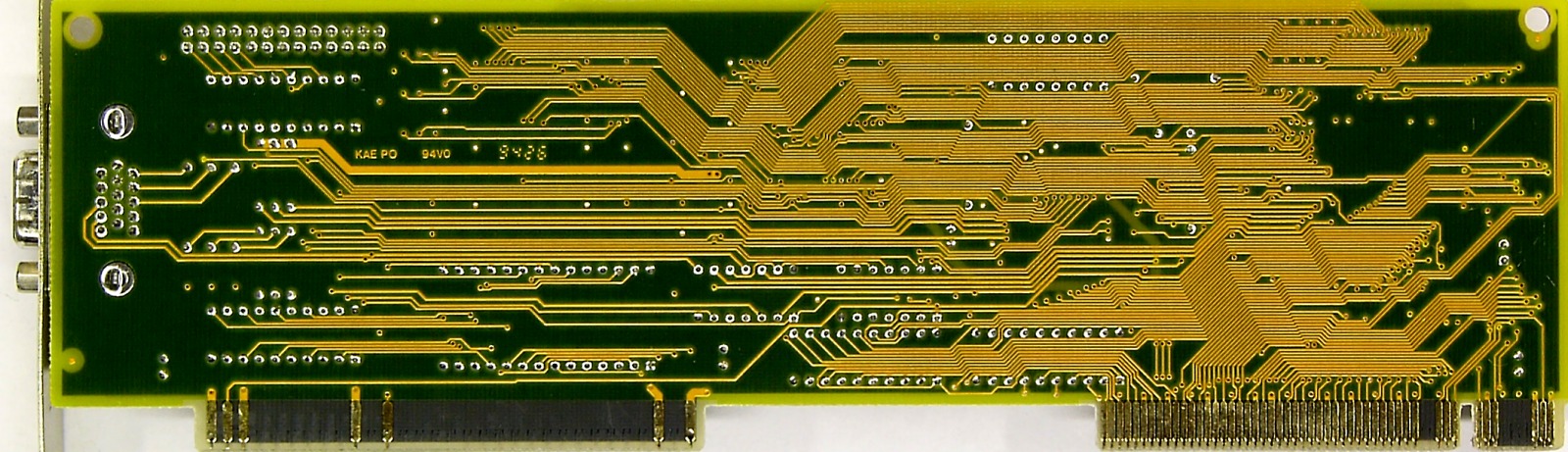

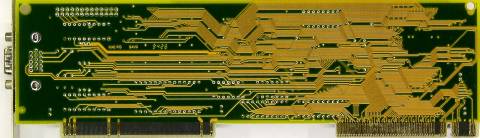

image2 Image 2 of 2 (Palcal)
