Acer Winartist PV70
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
8901
fccFCC ID
IPLPV70
ramRAM type
DRAM
ramRAM size
1MB2MB
chip Chips and specs
-> Video
S3 86C775 (Trio64V2/DX)
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x

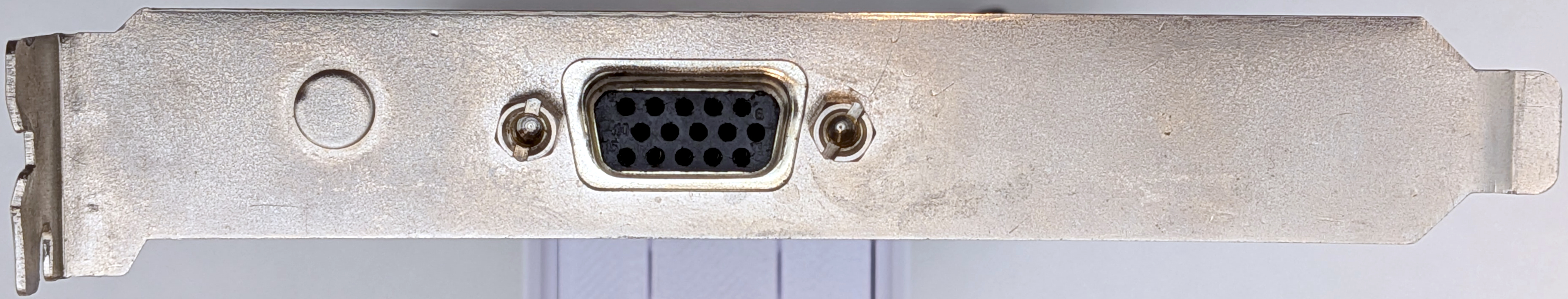

  • DE-15
powerPower connectors
Empty
Last updated 2025-11-01T12:28:07Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
V2.10
Note
File
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.41.07
OS support
Windows 9x
Arch
x86
Size
183.6KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-05
File
Logs

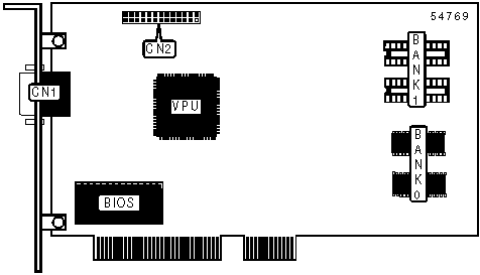

image1 Image 1 of 6 (Microhouse)
image2 Image 2 of 6 (BringsYouFish)

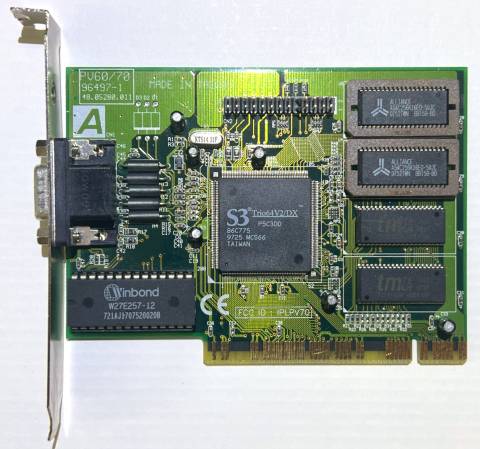

image3 Image 3 of 6 (dustythefuzzydragon)

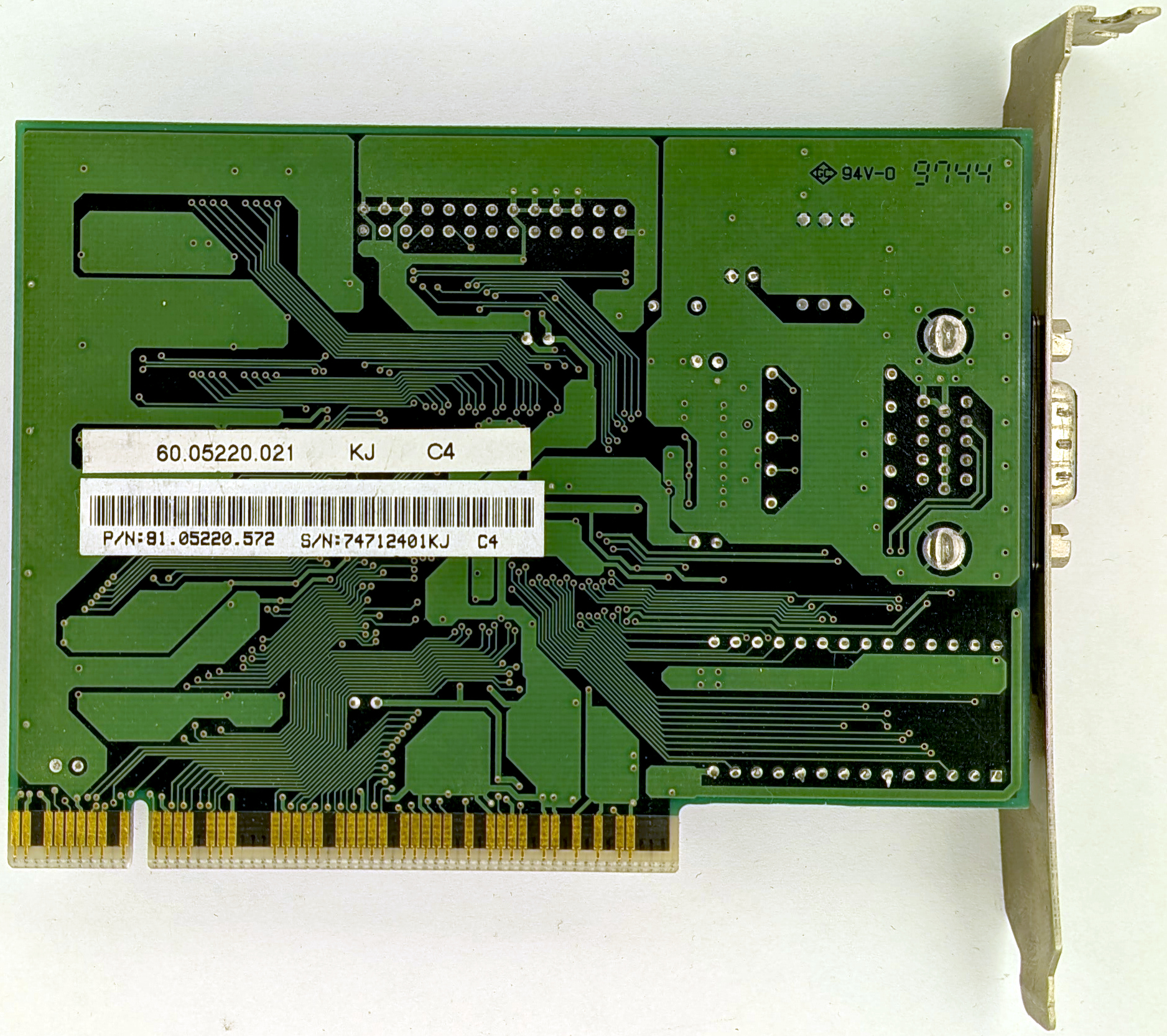

image4 Image 4 of 6 (BringsYouFish)

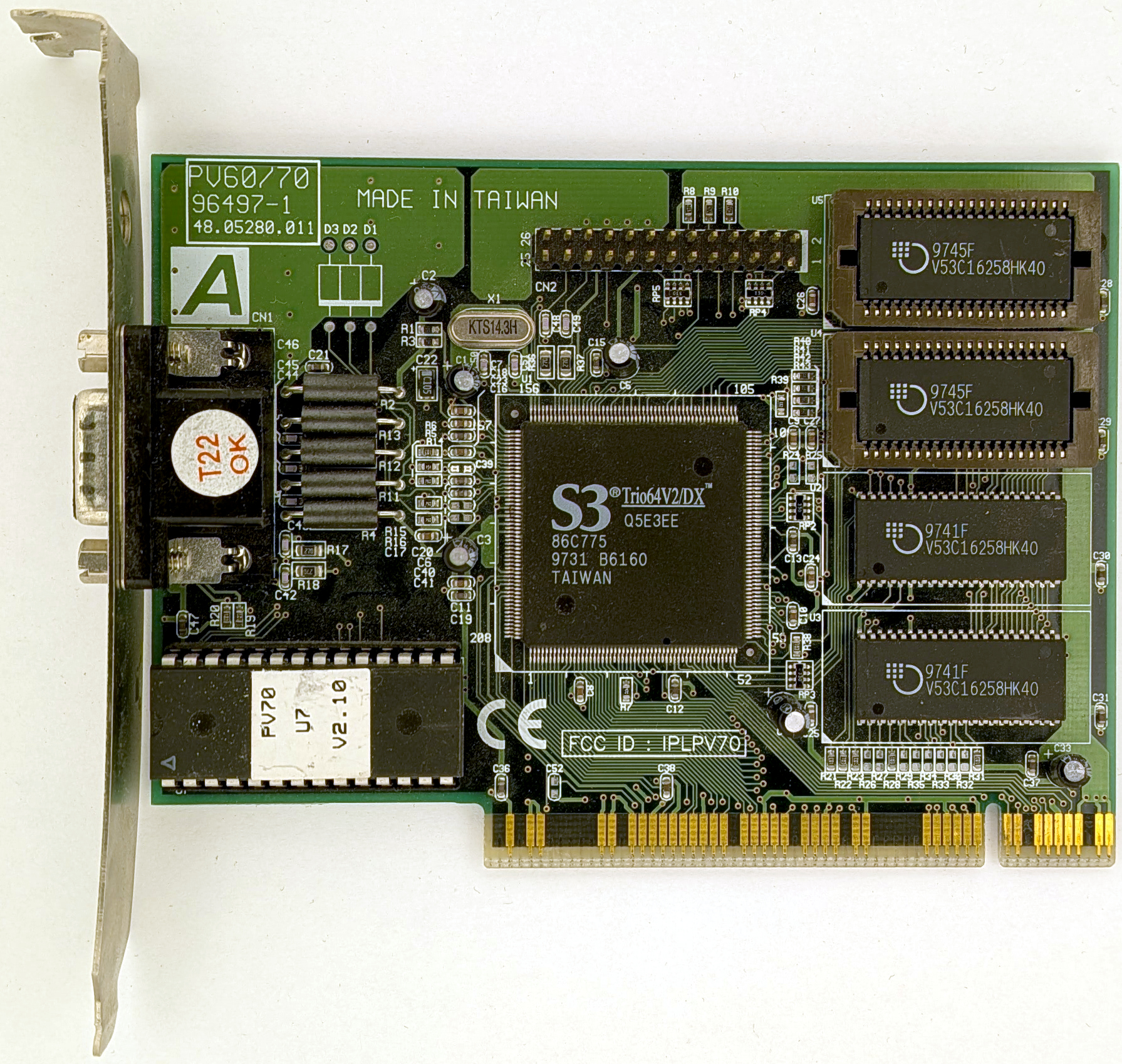

image5 Image 5 of 6 (dustythefuzzydragon)

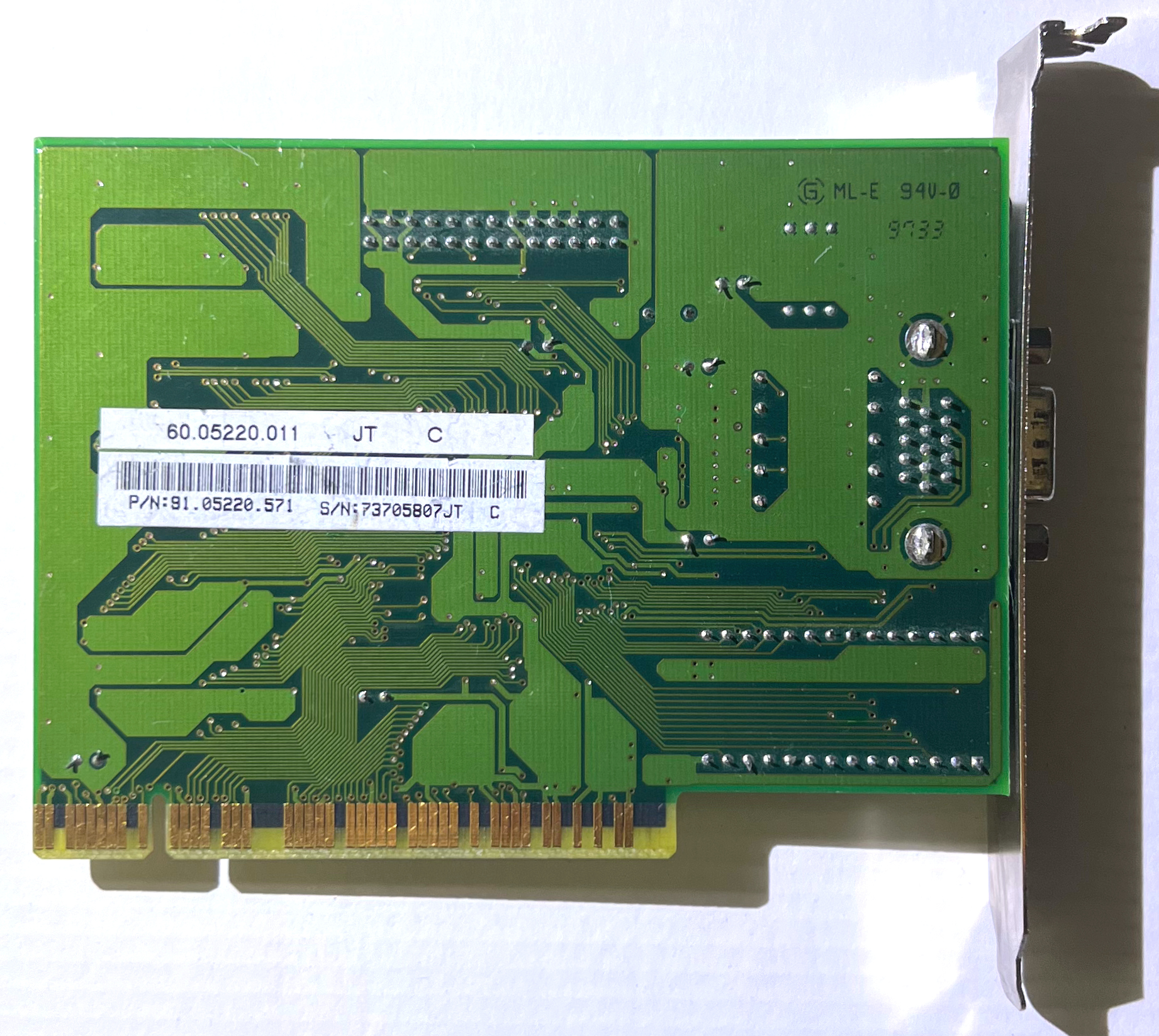

image6 Image 6 of 6 (BringsYouFish)
