Acer S32 AUDIO CARD
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
IPL832-823
chip Chips and specs
-> Audio
Creative CT2504 (Vibra 16S) Philips TDA1517 (2x6W Audio Power Amplifier) Yamaha YAC512 (2-Channel Floating DAC) Yamaha YMF262 (OPL3)
MTL
Chip Set Unidentified
Data Bus 16-bit ISA
Card Type Sound card
I/O Options CD-ROM audio, CD-ROM interface, game port, line in, line out, microphone in, PC speaker in, speaker out, wavetable
Maximum Onboard Memory None
Floppy drives supported None
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • DA-15
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-05-20T13:12:36Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
P16V-STD-01-ENG
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
1.7MB
Filename
Name
Version
1.12.000
OS support
Windows 9x
Arch
x86
Size
841.8KB
Filename
Name
Version
N/A
OS support
Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
14.6MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-02-18
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs

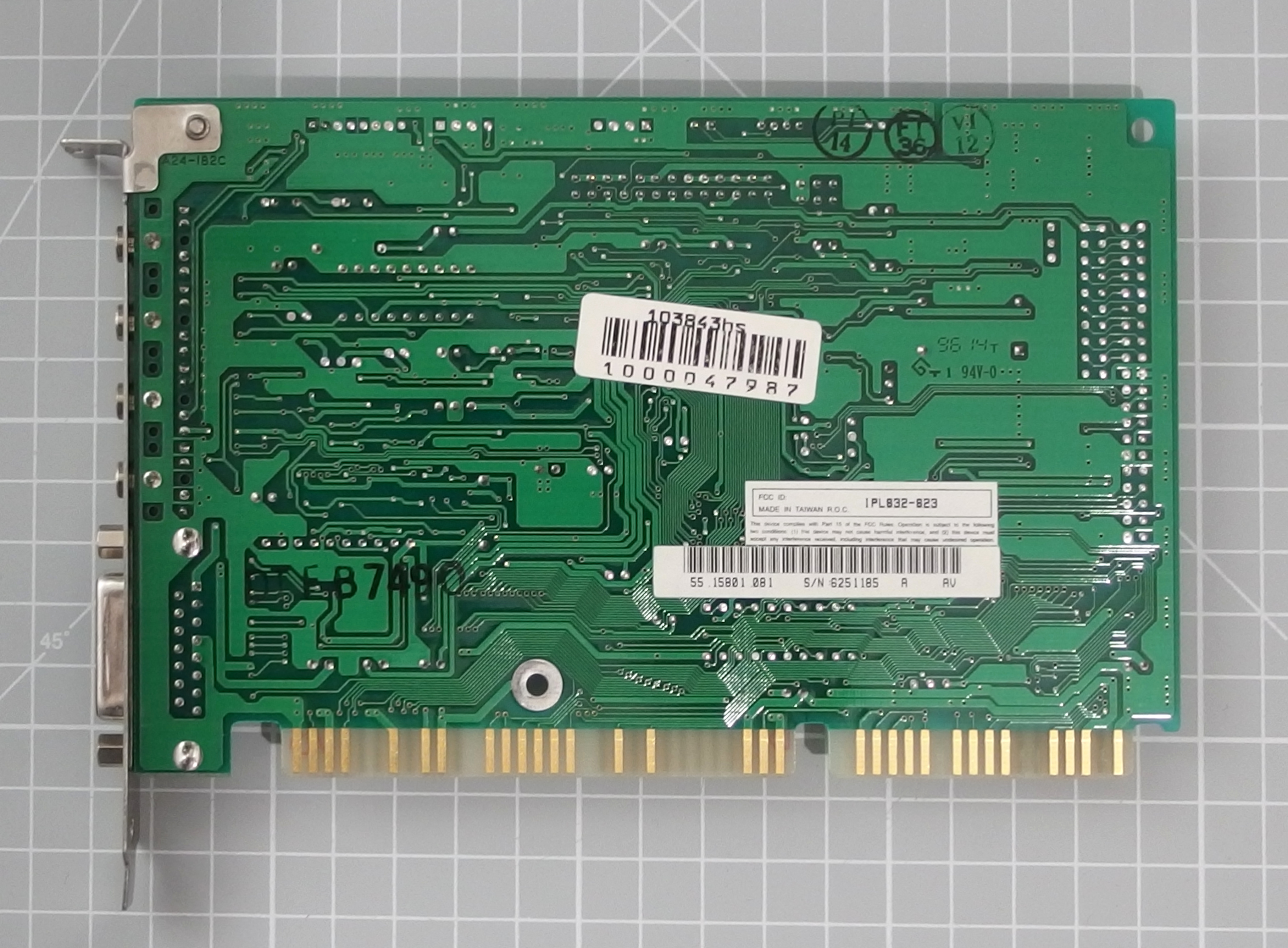

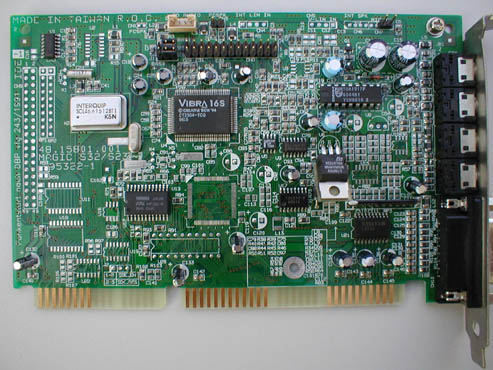

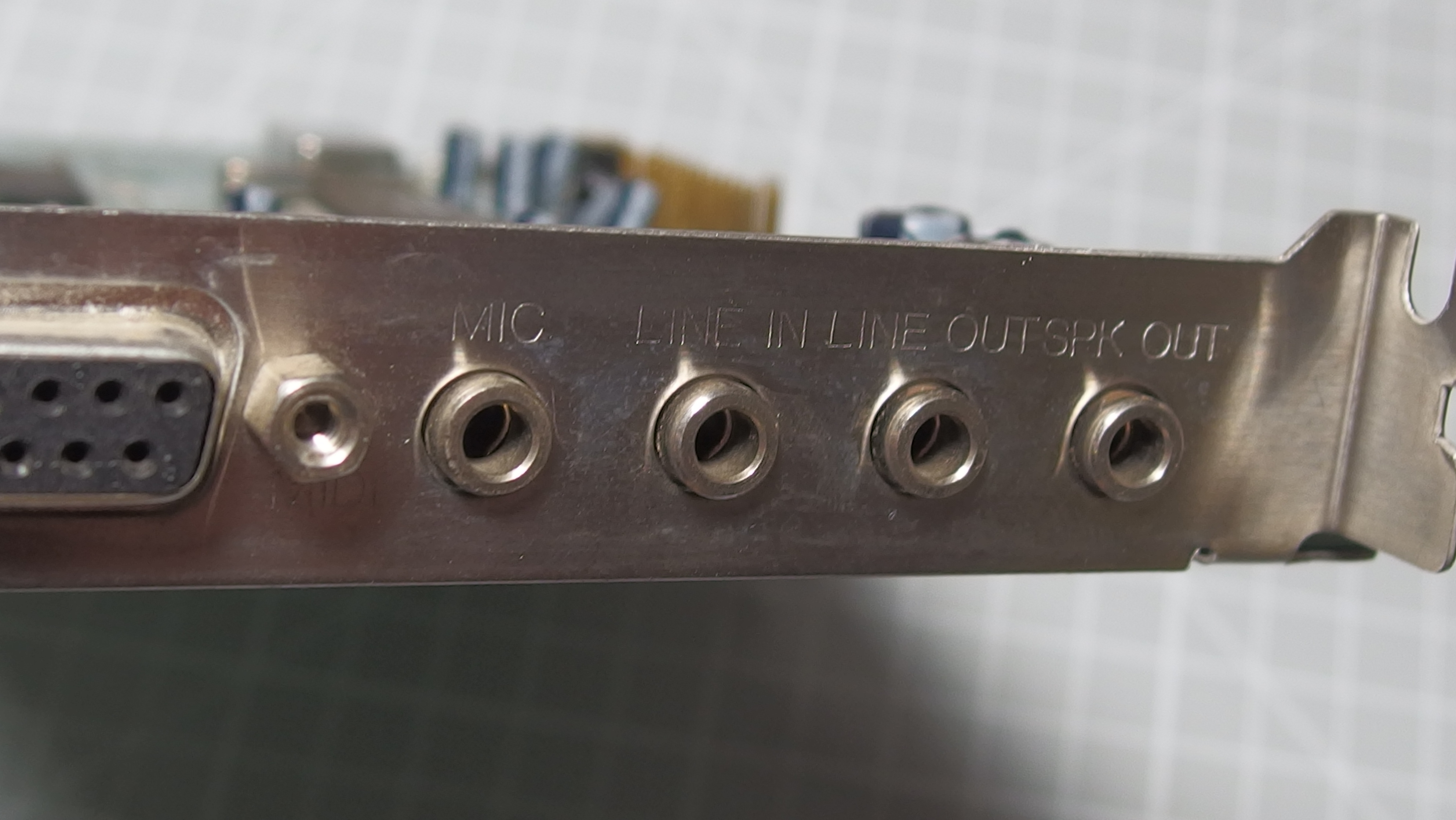

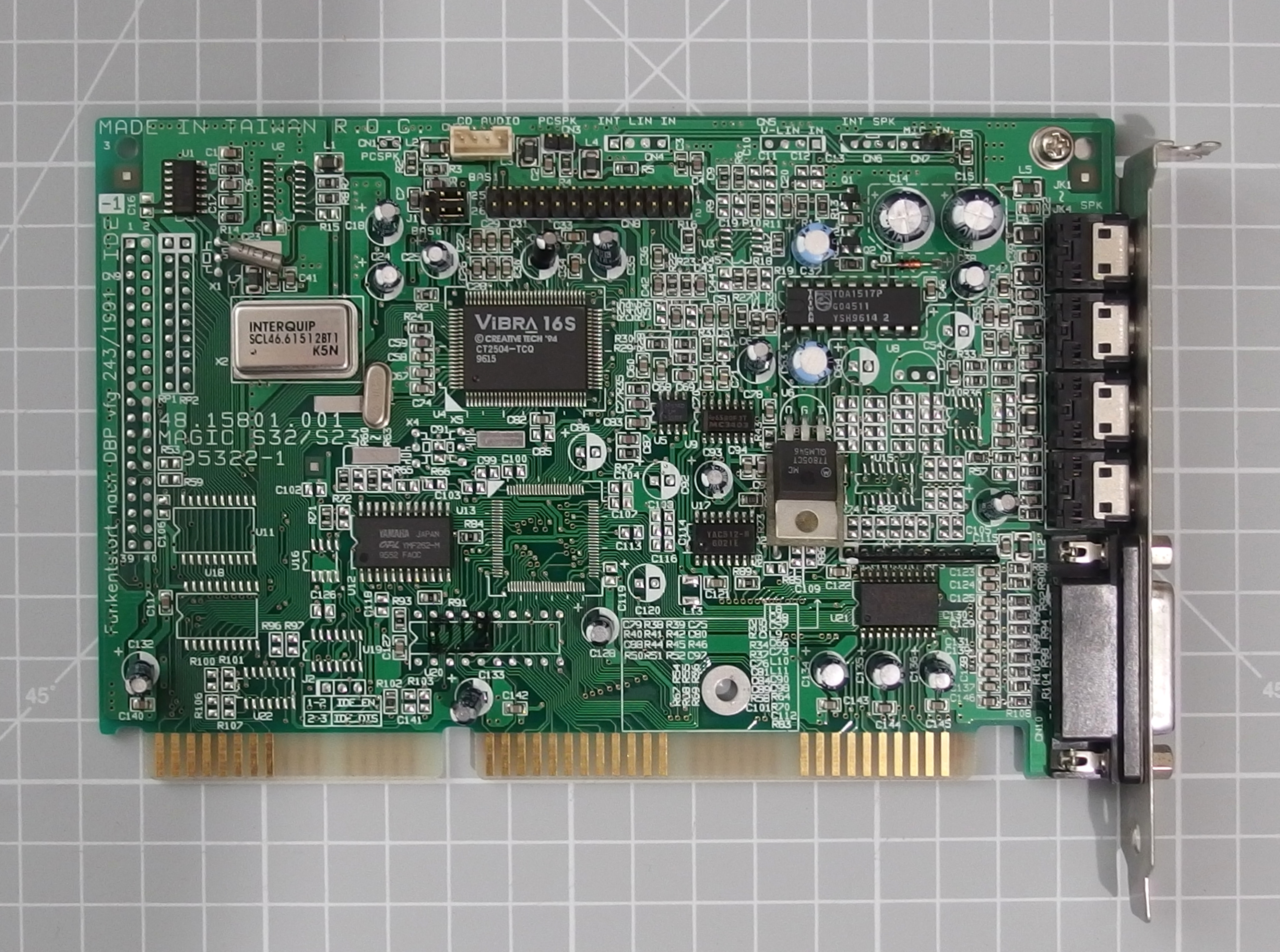

image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5 (targeted)
image3 Image 3 of 5 (gerwin)
image4 Image 4 of 5 (targeted)
image5 Image 5 of 5 (targeted)
