3Dfx Voodoo 5 5500 AGP
Logs
typeType
Video
interfaceInterface
signalSignaling
AGP 2x
dimSlot height
1
datePCI ID
0009
ramRAM type
SDRAM
ramRAM size
64MB
chip Chips and specs
-> Signal transmitter/receiver
IDT QS3861 (10-Bit Bus Switch)
-> Video
3Dfx VSA-100 (Napalm)
  • Die size: 112mm²
  • Process node: 250nm
  • Release date: June 2000
tag Also known as
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
1x
Last updated 2025-11-29T10:41:13Z
bios 8 card BIOS files available
Version
Note
File
Logs
Version
1.18
Note
File
Logs
Version
1.18
Note
Modded with memory timings from 1.15
File
Logs
Version
1.15
Note
File
Logs
Version
1.12
Note
183mhz clock PCB 2300 NFR
File
Logs
Version
1.06
Note
File
Logs
Version
1.03h
Note
0900-Rev A1 Prototype
File
Logs
Version
1.03e
Note
P/N 210-0413-001-A0 Prototype
File
Logs
Version
1.03e
Note
1800B Prototype
File
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.04.01 beta
OS support
Windows 9x
Arch
x86
Size
8.4MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2013-01
File
Logs
Chip
Release date
1999
File
Logs
Chip
Release date
1999-10-06
File
Logs
Chip
Release date
1999-11-19
File
Logs
image1 Image 1 of 5 (Stephan W.)
image2 Image 2 of 5 (vgamuseum.ru)

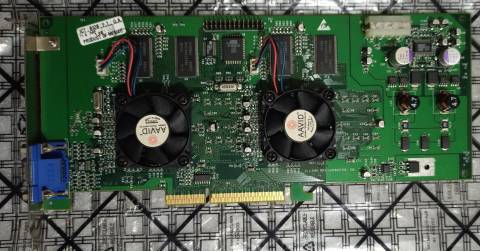

image3 Image 3 of 5 (funkeirox)

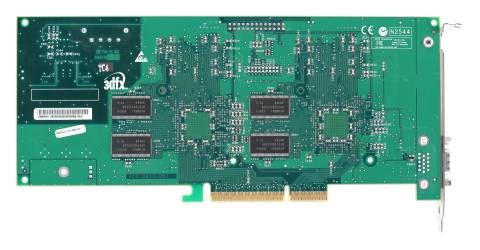

image4 Image 4 of 5 (vgamuseum.ru)
image5 Image 5 of 5 (funkeirox)
