3Com FAST ETHERLINK XL PCI (3C905B-TX)
Logs
typeType
Network
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
9055
chip Chips and specs
-> Network
3Com 40-0483-004
MTL
Boot ROM Available
Wiring Type Unshielded twisted pair
Network Transfer Rate 10Mbps/100Mbps
tag Also known as
  • 3Com FAST ETHERLINK XL PCI w/ MBA (3C905B-TXMBA)
  • Compaq 179164-001 / 179338-001
  • 3Com FAST ETHERLINK XL PCI (3C905B-TXNM)
portintI/O ports
1x
  • RJ45
1x
  • 32-pin DIP socket
1x
  • 3-pin 2mm AMP CT
powerPower connectors
Empty
Last updated 2025-08-23T23:04:33Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
3.00 (971210)
Note
Boot rom (PXE, TCP/IP, RPL)
File
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.1
OS support
MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 3.1x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
2.7MB
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
6.9MB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
image1 Image 1 of 10 (Microhouse)
image2 Image 2 of 10 (CircusCat)
image3 Image 3 of 10 (Douglar)
image4 Image 4 of 10 (Douglar)
image5 Image 5 of 10 (davidg)

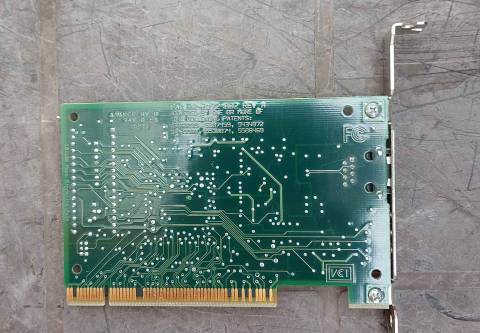

image6 Image 6 of 10 (CircusCat)
image7 Image 7 of 10 (Douglar)
image8 Image 8 of 10 (Douglar)
image9 Image 9 of 10 (davidg)
image10 Image 10 of 10 (davidg)
