3Com FAST ETHERLINK XL (3C905-TX) REV:A
Logs
typeType
Network
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
Empty
fccFCC ID
DF63C905-TX
chip Chips and specs
-> Network
National Semiconductor DP83840A (10/100 Mb Ethernet PHY) National Semiconductor DP83223 (Fast Ethernet Transceiver) 3Com 3C90x (Parallel Tasking)
MTL
Boot ROM Available
Data Bus 32-bit PCI
NIC Type Ethernet
Topology Star
Card Size Full height, half length
Wire Type Unshielded twisted pair
Network Transfer Rate 10Mbps/100Mbps
Network speed
10Mb/s
100Mb/s
tag Also known as
  • 3Com ASSY 03-0104-005 REV:A
portintI/O ports
1x
  • RJ45
1x
  • 32-pin DIP socket
powerPower connectors
Empty
Last updated 2025-05-20T13:17:24Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.1
OS support
MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 3.1x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
2.7MB
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
6.9MB
Filename

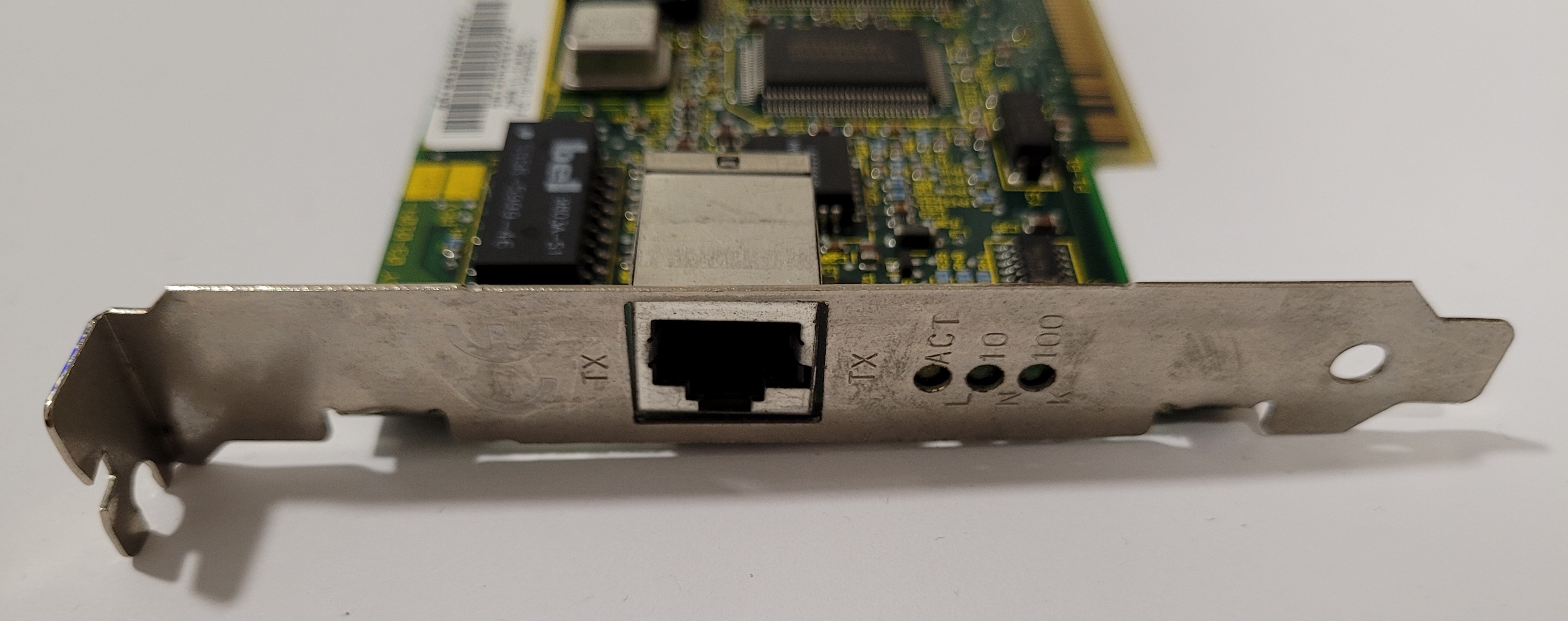

image1 Image 1 of 7 (Microhouse)

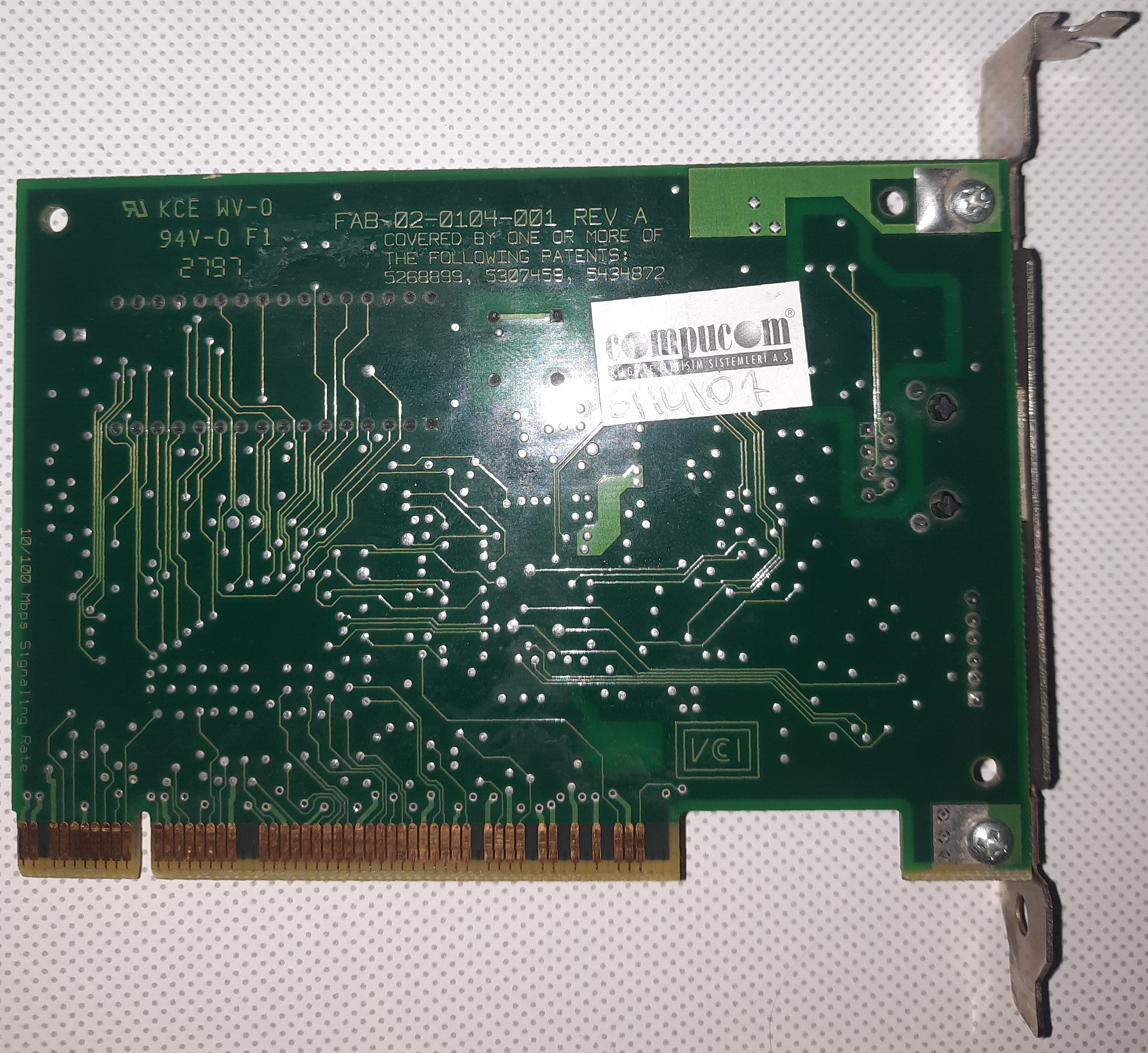

image2 Image 2 of 7 (Wolt1x)

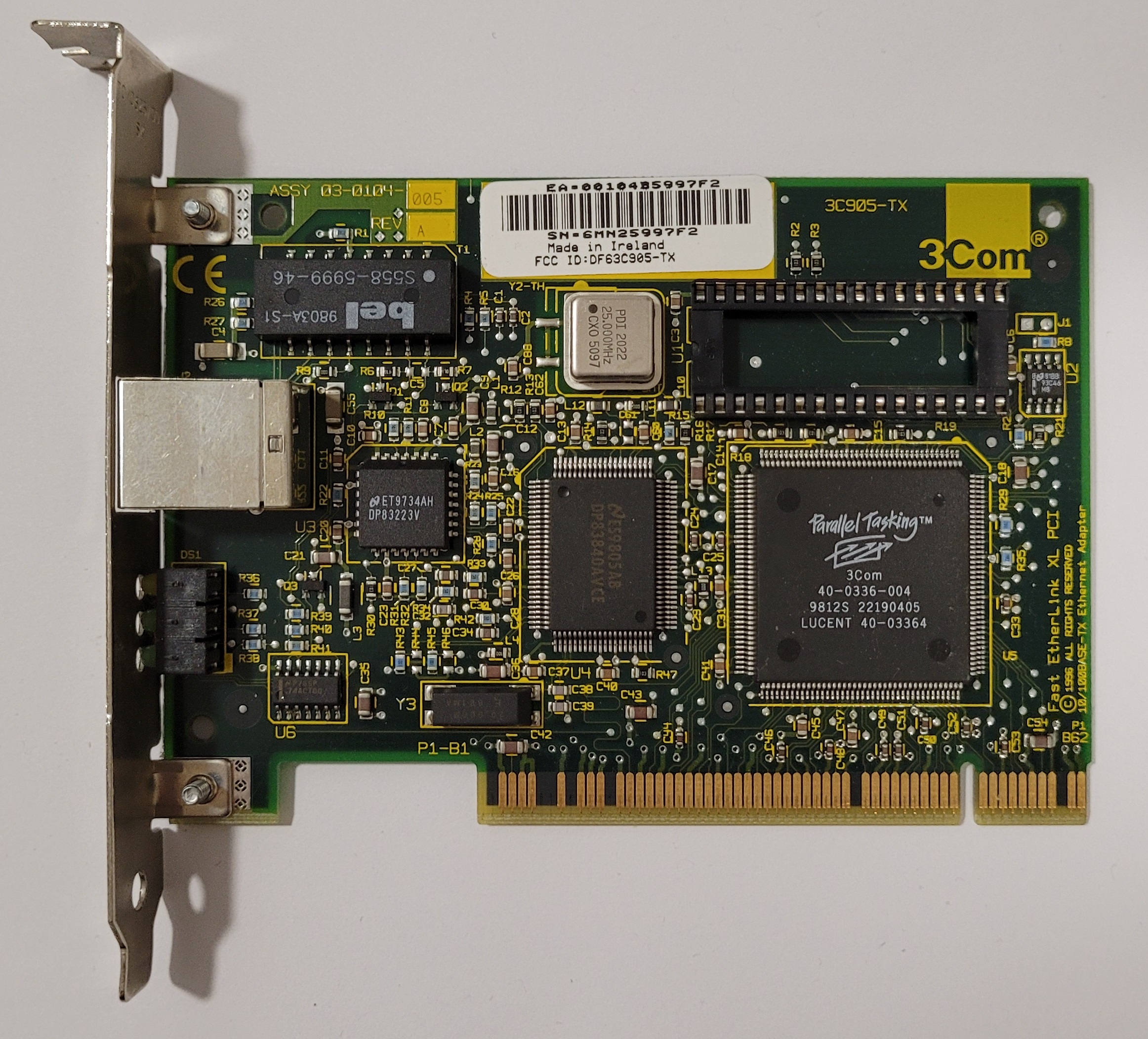

image3 Image 3 of 7 (kotochi98)

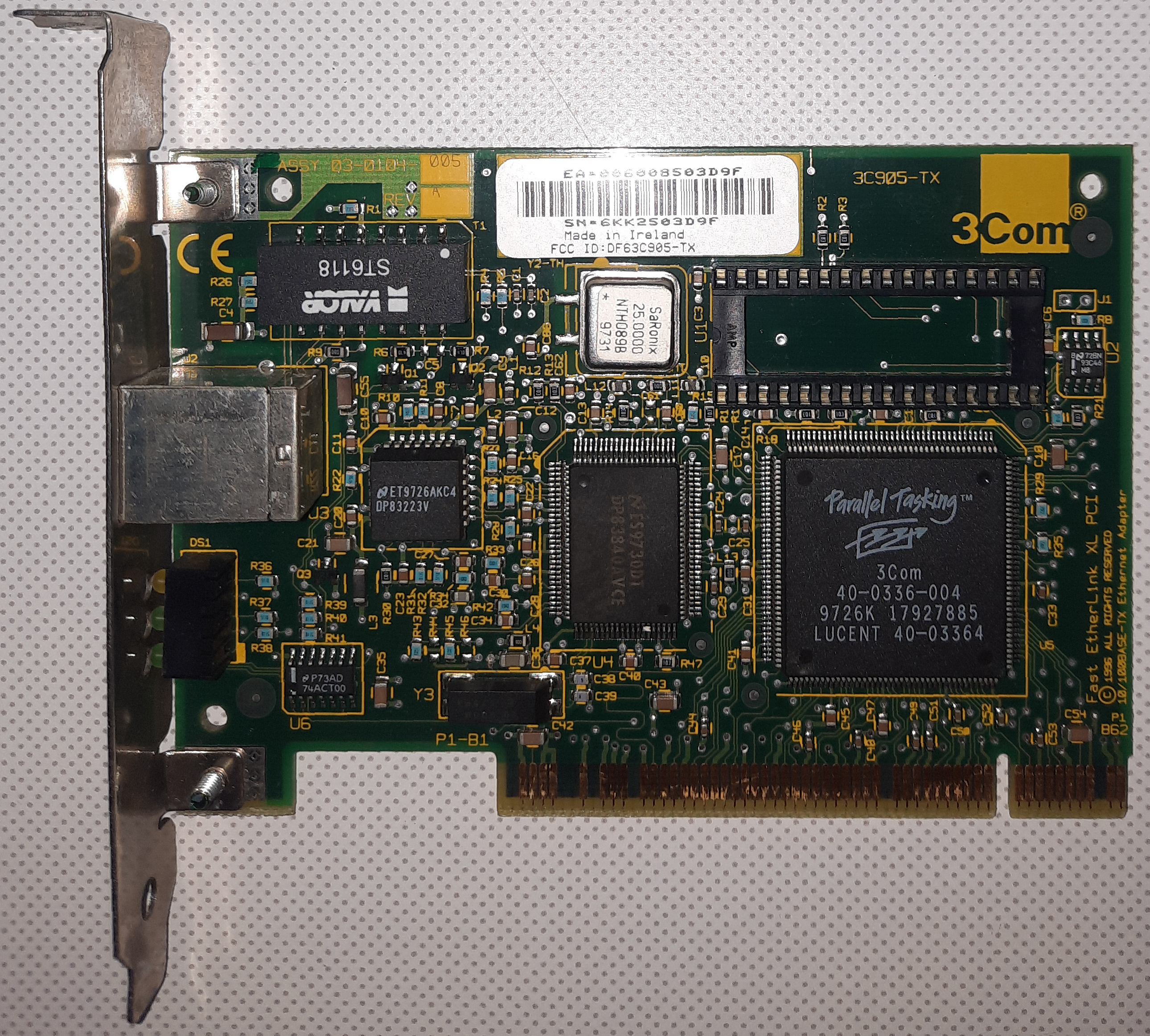

image4 Image 4 of 7 (Wolt1x)

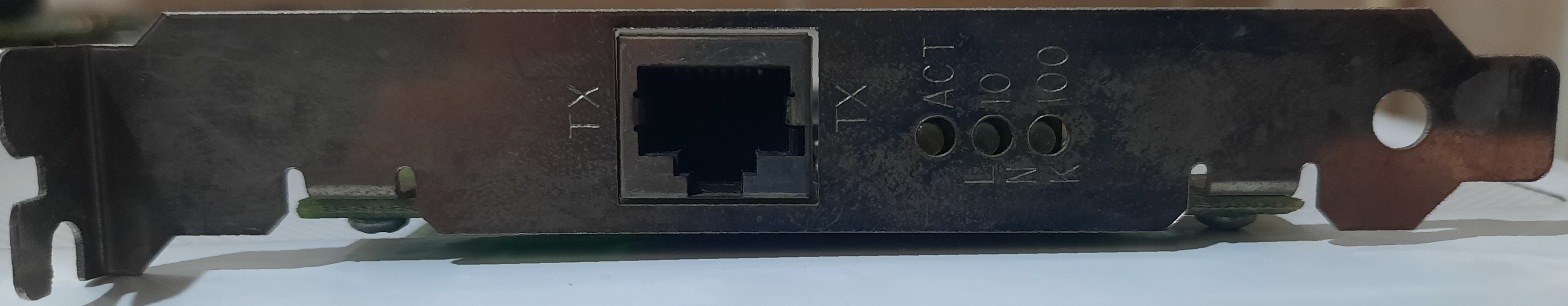

image5 Image 5 of 7 (kotochi98)

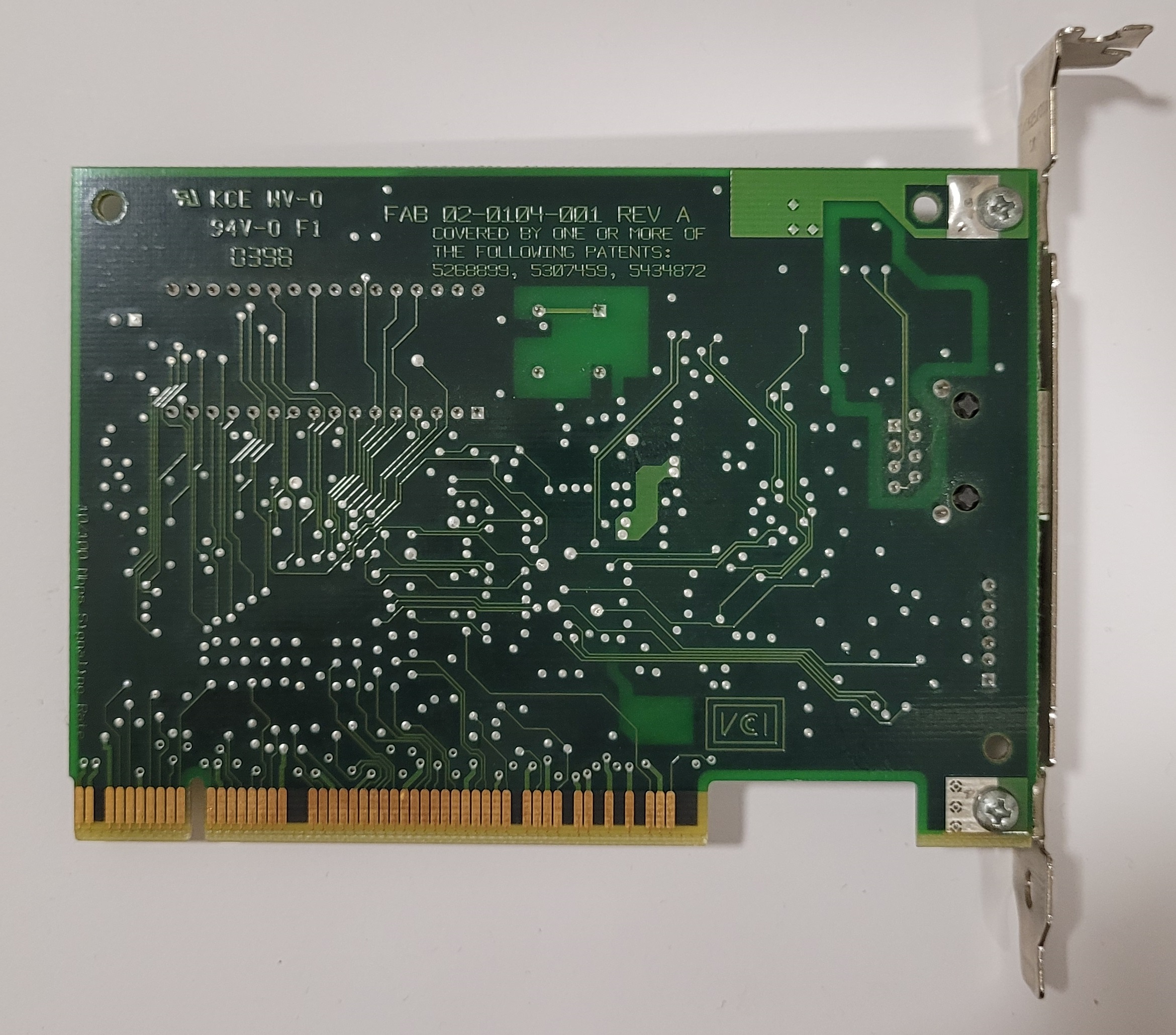

image6 Image 6 of 7 (Wolt1x)
image7 Image 7 of 7 (kotochi98)
