3Com Etherlink 3C905CX-TXM
Logs
typeType
Network
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
9200
chip Chips and specs
-> Network
3Com 920-ST03 (3C920)
MTL
Boot ROM Available
Data Bus 32-bit PCI
NIC Type Ethernet
Topology Star
Card Size Full height, half length
Wire Type Unshielded twisted pair
Network Transfer Rate 10Mbps/100Mbps
Network speed
10Mb/s
100Mb/s
portintI/O ports
1x
  • RJ45
1x
  • 3-pin 2mm AMP CT
powerPower connectors
Empty
Last updated 2026-01-12T15:37:40Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
3.00
Note
3COM MBA
File
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.1
OS support
MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 3.1x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
2.7MB
Filename
Version
OS support
MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
6.9MB
Filename
doc No card documents available
image1 Image 1 of 5 (Rafal Rzeczkowski)
image2 Image 2 of 5 (andysarcade)

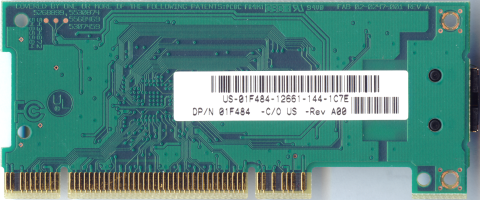

image3 Image 3 of 5 (Rafal Rzeczkowski)

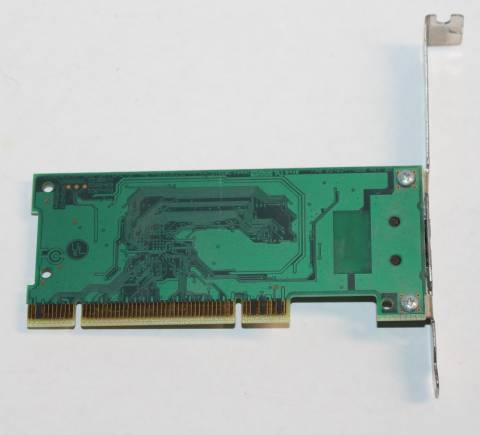

image4 Image 4 of 5 (andysarcade)
image5 Image 5 of 5 (andysarcade)
