ATi Rage 128 GL
Logs
dateType
Video
486Family
threadsMemory ctrl.
SGRAMSDRAM
datePCI Vendor ID
1002
datePCI Device ID
5245 5246
dimensionProcess node
250nm
actActions
See all boards with this chip See all cards with this chip
tag Also known as
  • ATi 215R4GASA22 (stepping A22)
doc No chip documents available
notes Notes

Device IDs

  • 5246 = AGP
  • 5245 = PCI

Package

  • BGA 328 package

Features

  • Supports AGP 2X
  • Supports 64bit SDR/DDR DRAM
  • Supports 128 bit SDR DRAM
  • 128 bit not support if AMC/EVP port present without mux
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.13.7110
OS support
Windows 9x
Arch
x86
Size
11.5MB
Filename
Name
Version
5.13.01.3279
OS support
Windows 2000
Arch
x86
Size
9.6MB
Filename
Name
Version
4.13.7192
OS support
Windows 9x
Arch
x86
Size
12MB
Filename
Name
Version
4.12.6292
OS support
Empty
Arch
x86
Size
13.5MB
Filename
Name
Version
6.13.3279
OS support
Windows XP/2k3
Arch
x86
Size
9.6MB
Filename
Last updated 2025-06-10T17:20:59Z

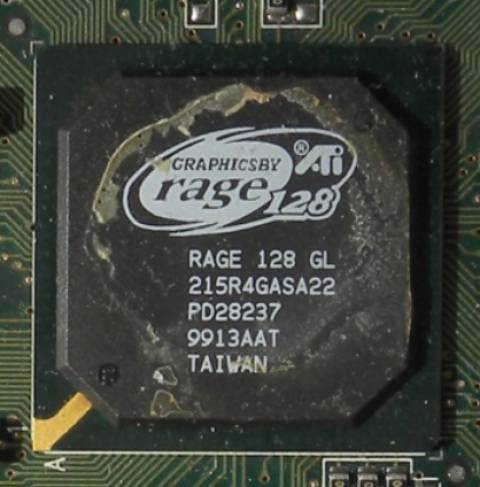

image1 Image 1 of 1 (Vlask)
