Logs
Type
Family
Package
Process node
TDP
Also known as
| Microarchitecture | |
|---|---|
| CPUID | 513 (B1),515 (C1),517 (D1),51A (tA1) |
| L1 cache | 8KB code, 8KB data |
| Process node | 800nm |
| Core | P5 |
| Bus speed | 60MHz |
| Frequency | 60MHz |
| Multiplier | 1x |
| Power | |
|---|---|
| Voltage | 5V |
No chip documents available
Notes
Steppings earlier than D1 suffer from the infamous Intel FDIV bug.
No drivers available
Known issues
- Recalled Product (Certain revisions only)
One or more revisions of this hardware component were recalled from the market because of certain reasons like defects (including major breaking ones), overheating, fire, or safety hazards. Users of said hardware component should take precaution while using it or even avoid using it altogether.
Always look the hardware compoment's page for more info about it.
- Intel FDIV Bug
Some revisions/steppings of this processor suffers from the infamous Intel FDIV bug, a hardware bug affecting the FPU of the early Intel Pentium processors. Because of the bug, the processor would return incorrect binary floating point results when dividing certain pairs of high-precision numbers.

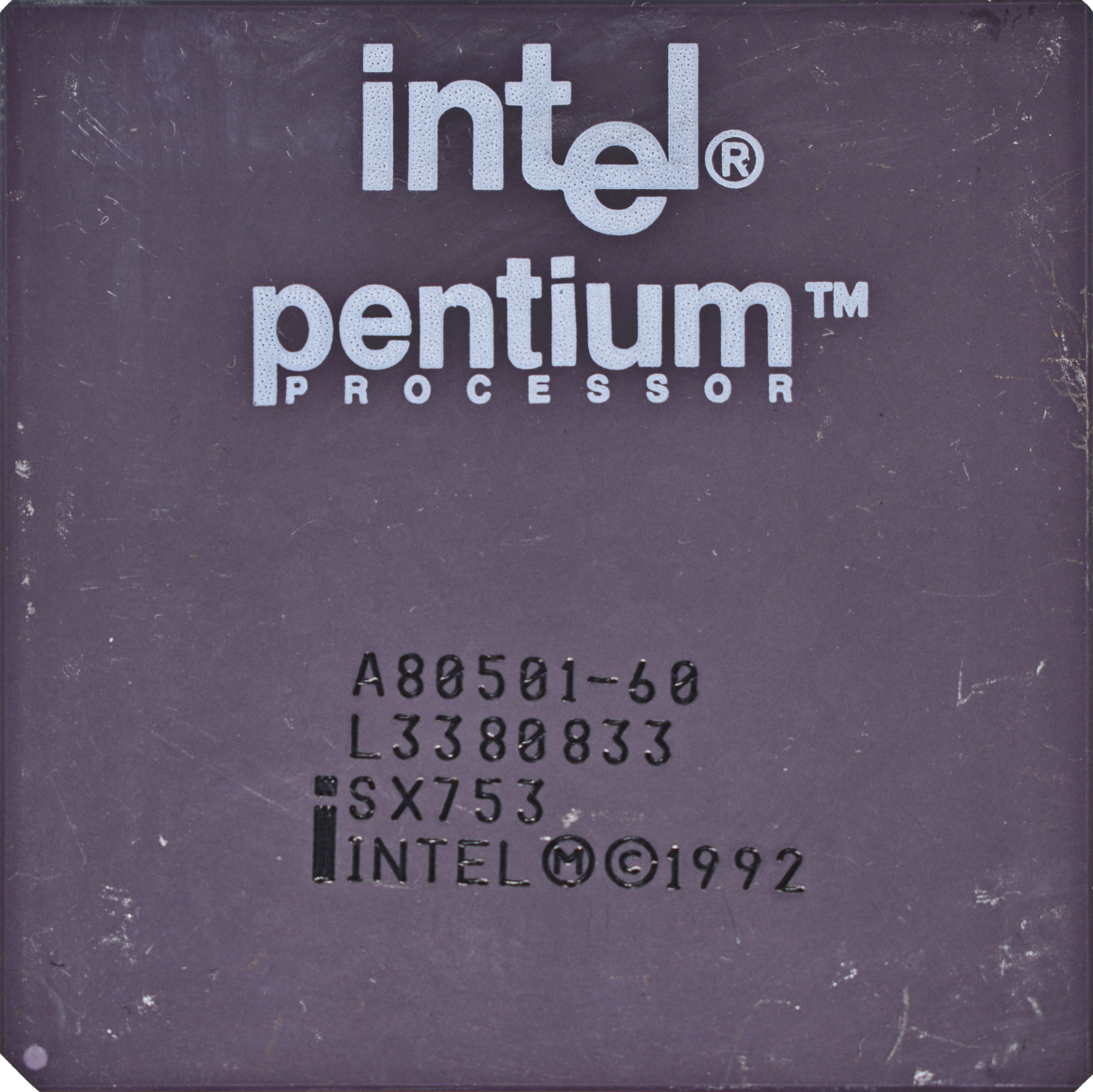

Image 1 of 3 (computerguy096)

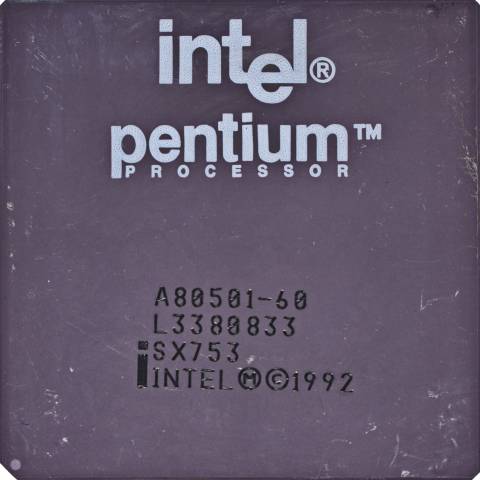

Image 2 of 3 (limsup)

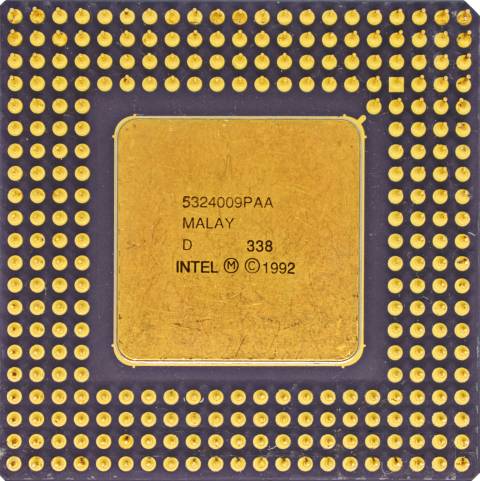

Image 3 of 3 (limsup)
